Industrial Computing for High-Speed Vision Inspection Systems
The transition from vision prototype to production-reliable inspection system is where most projects fail. Consumer PCs introduce unpredictable latency, thermal throttling causes frame drops, and unprotected I/O creates false rejects. Our industrial vision computing solutions provide the foundation for reliable, high-speed machine vision and AOI deployments—from high-bandwidth camera acquisition to deterministic reject actuation.
Sub-10ms Latency
End-to-end vision pipeline from image capture to reject actuation in under 10ms, enabling 1200+ packages per minute throughput on high-speed production lines.
Zero Frame Drops
Industrial-grade frame grabbers with on-board buffering and PCIe Gen4 bandwidth ensure continuous inspection without data loss under sustained production loads.
Scalable Compute
From 6 TOPS ARM NPU for entry-level inspection to 275+ TOPS multi-GPU configurations for advanced AI models—scale compute to match application complexity.
Why Standard PCs Fail in 24/7 Machine Vision Environments
Machine vision demands a unique combination of sustained memory bandwidth, massive parallel compute, and microsecond-level I/O timing. Consumer PCs fail because they’re optimized for interactive workloads, not deterministic production requirements.
Latency Bottlenecks in Vision Pipelines
Consumer PCs introduce unpredictable latency from USB camera interfaces, OS scheduling jitter, and shared memory contention. Production vision systems require dedicated data paths and real-time OS patches.
Thermal Throttling Under Sustained GPU Loads
GPU-accelerated vision generates 300W+ heat loads. Consumer cooling solutions throttle under sustained loads, causing frame drops and inconsistent inspection results.
I/O Isolation Gaps on the Factory Floor
Industrial environments introduce ground loops, EMI interference, and voltage transients. Unprotected I/O causes false triggers, communication errors, and equipment damage.
High-Bandwidth Vision Pipeline Architecture

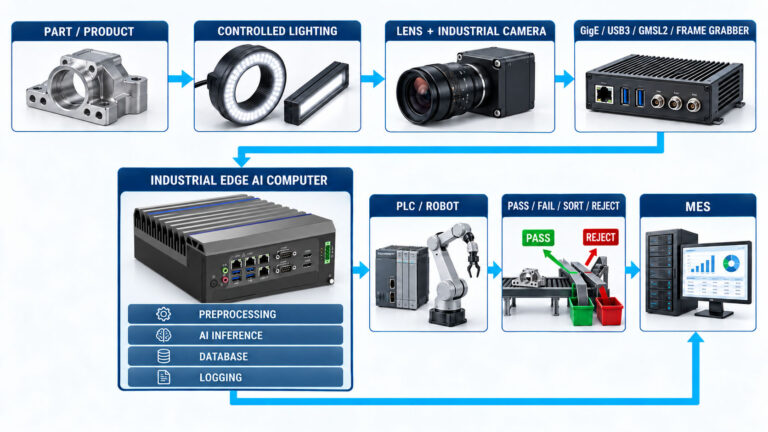

Modern machine vision systems follow a four-stage processing pipeline: Acquisition → Processing → Analysis → Actuation. Each stage imposes specific requirements on the computing platform, from high-bandwidth camera interfaces to low-latency I/O for reject mechanisms.
Production vision systems typically operate under strict latency constraints. For a packaging line running at 1200 packages per minute (50ms per package), the complete vision pipeline—from trigger to reject actuation—must complete within 10-15ms to allow mechanical response time.
The computing platform must guarantee this latency under worst-case conditions, including thermal throttling, OS scheduling jitter, and memory contention. Industrial-grade platforms achieve this through real-time OS patches (PREEMPT_RT), dedicated GPU memory paths (NVIDIA GPUDirect), and hardware-triggered I/O that bypasses CPU involvement.
High-Speed Image Acquisition
The image acquisition stage determines the fundamental limits of your vision system. Industrial camera interfaces—GigE Vision, CoaXPress, and CameraLink—each impose specific bandwidth, latency, and cable length tradeoffs that must align with your inspection requirements.
GigE Vision provides the most flexible deployment with 100m+ cable runs and switch-based multi-camera architectures, but bandwidth limits to 1-10 Gbps per link. CoaXPress (CXP-12) delivers 12.5 Gbps per lane with 40m cable lengths, ideal for high-resolution line-scan cameras in semiconductor inspection. CameraLink remains relevant for legacy equipment and specialized high-speed area-scan cameras.
Frame grabber selection is critical for high-speed applications. Industrial vision IPCs integrate PCIe-based frame grabbers with on-board memory buffers that handle burst data rates exceeding 10GB/s. This buffering prevents frame drops during the processing pipeline’s variable latency and ensures continuous inspection at production speeds.
GPU-Accelerated Deep Learning & Thermal Architecture
Deep learning has transformed machine vision, enabling the inspection of complex, variable defects. However, processing high-resolution streams through neural networks demands massive parallel compute—generating extreme heat loads that instantly cripple standard PCs.
Rather than relying on generic airflow assumptions, our vision controllers feature physical cooling architectures engineered explicitly to suppress high-TDP thermal throttling. For high-performance configurations combining Intel Core i9 processors with discrete NVIDIA RTX 4060/4070 GPUs, we deploy a custom multi-heatpipe layout. This design uses direct-die contact blocks to rapidly draw heat away from the silicon, exhausted by high-static-pressure, redundant fan configurations.
This engineered thermal pathway guarantees sustained peak inference performance in 50°C ambient factory environments. By efficiently dissipating 300W+ heat loads continuously, the system prevents the frequency scaling and thermal throttling that lead to dropped frames and missed inspections on the production line.
Deterministic I/O Control & Fieldbus Integration
The final stage of the vision pipeline—triggering reject mechanisms, communicating with PLCs, and synchronizing with conveyor systems—requires deterministic I/O with microsecond-level precision. This is where consumer computing fundamentally fails.
We go beyond basic protection by engineering 2.5KV galvanic isolation specifically across all RS232/485 serial interfaces and RJ45 ports. This robust isolation safeguards the vision data paths from ground loops, voltage transients, and EMI interference generated by heavy machinery.
For advanced fieldbus integration, models like the AX-130BT natively support standard CAN Bus. To guarantee flawless signal integrity and strictly adhere to the 60Ω rule for impedance matching, terminal resistance is configured exclusively via specific internal jumper settings on the mainboard. This deliberate architectural design eliminates the vulnerability of external switches or indicators, ensuring that critical resistance values cannot be compromised by environmental vibration, physical tampering, or harsh factory conditions.
Real-World AOI Application Scenarios
Machine vision and AOI span diverse industries, each with specific requirements for resolution, speed, and environmental conditions.
Packaging Line Inspection
Food & Beverage / Pharmaceutical / Consumer Goods

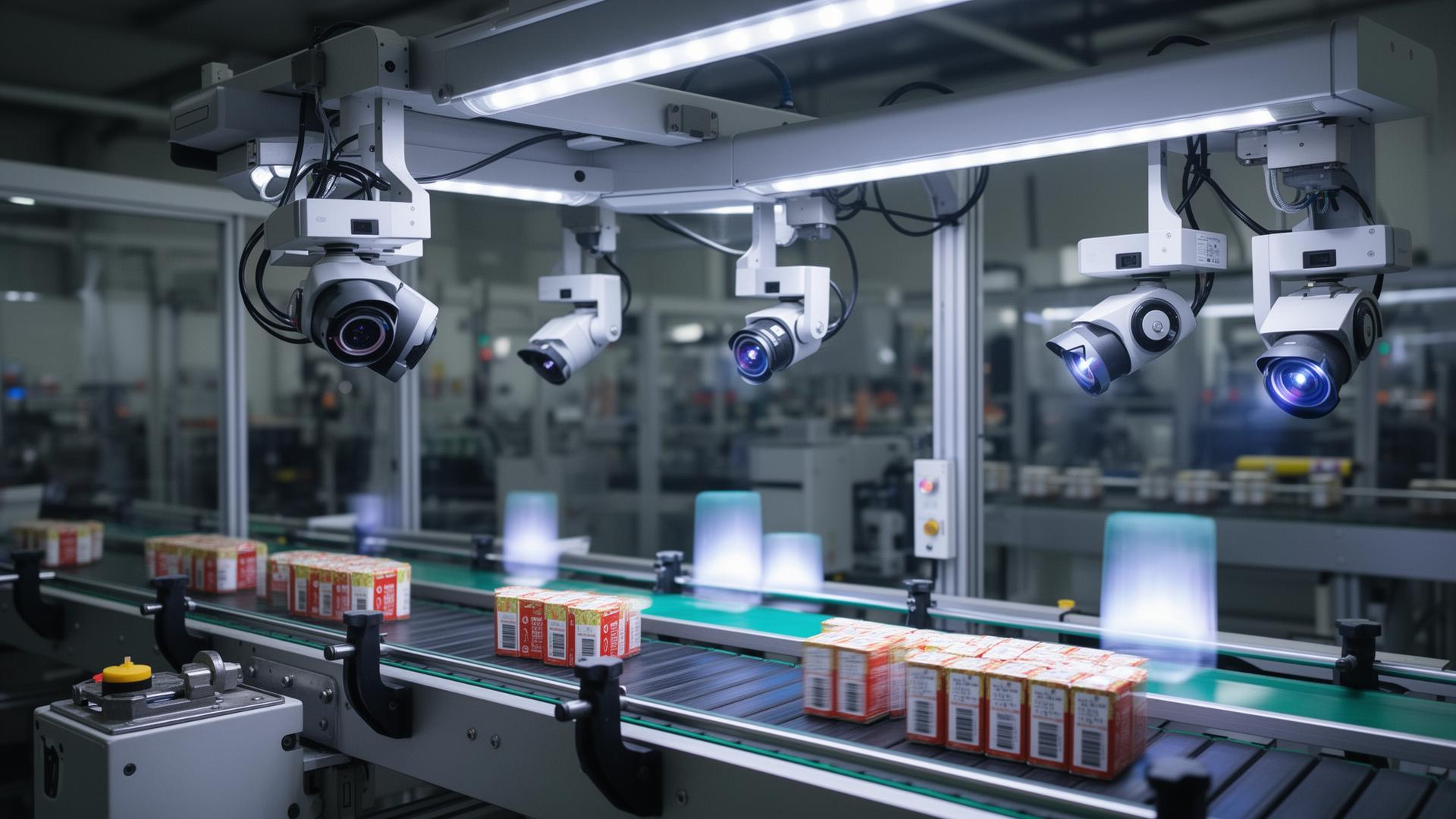

High-speed packaging lines running at 1200+ packages per minute demand sub-10ms end-to-end latency from trigger to reject. Multi-camera setups inspect fill levels, label placement, seal integrity, and date codes simultaneously. The vision IPC must handle 4-8 camera streams while maintaining deterministic I/O for reject synchronization.
Best for: Packaging line integrators, CPG manufacturers, pharmaceutical packagers
PCB & SMT Inspection
Electronics Manufacturing / Semiconductor
Automated optical inspection (AOI) for PCB assembly requires high-resolution imaging (10+ megapixels) with precise XY stage synchronization. Defect detection spans solder joint quality, component placement accuracy, and missing components. Deep learning models trained on defect libraries achieve >99.5% detection rates with <0.1% false positive rates.
Best for: EMS providers, PCB manufacturers, semiconductor fabs
Automotive Quality Control
Body-in-White / Paint Shop / Final Assembly

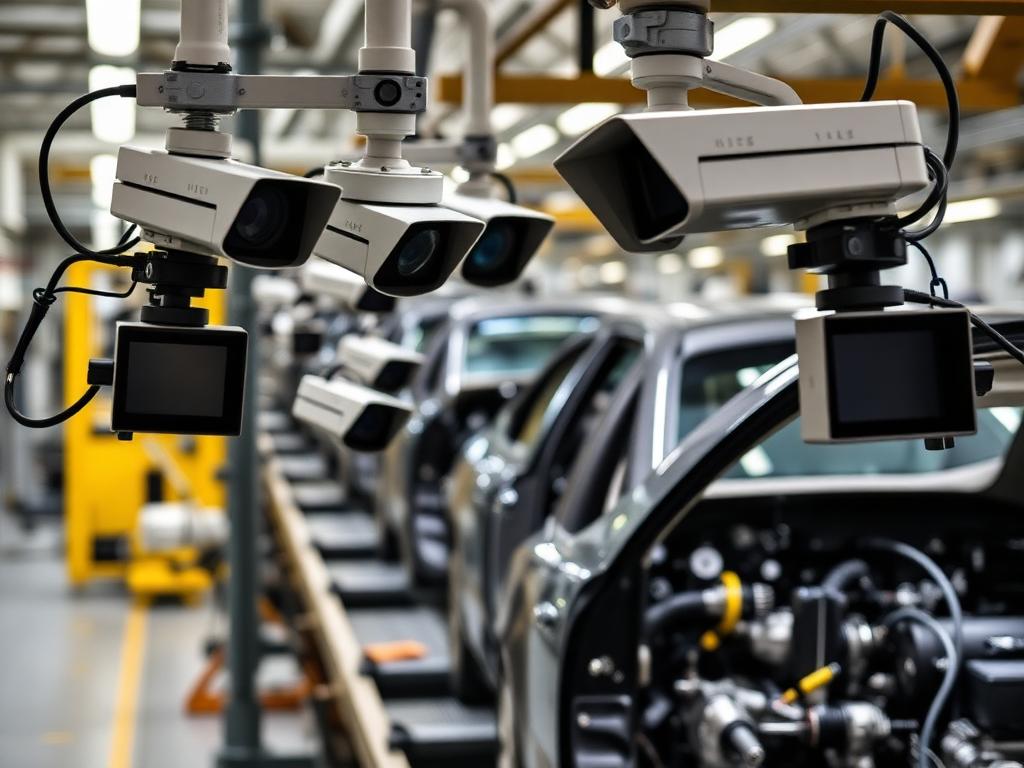

Automotive vision systems inspect weld quality, paint defects, and assembly verification across body-in-white, paint shop, and final assembly. Multi-robot coordination requires tight timing synchronization and integration with plant-wide MES systems. Industrial-grade reliability ensures vision stations don’t become production bottlenecks.
Best for: Automotive OEMs, tier-1 suppliers, body-in-white integrators
Semiconductor Wafer Inspection
Wafer Fab / Advanced Packaging
Semiconductor inspection demands the highest resolution and bandwidth—16K+ line-scan cameras with CoaXPress-12 delivering 12.5 Gbps per lane. Defect detection at nanometer scales requires precise lighting control, vibration isolation, and cleanroom-compatible hardware. The IPC must support multiple frame grabbers with sustained data rates exceeding 50GB/s.
Best for: Semiconductor fabs, wafer inspection equipment OEMs, advanced packaging facilities
Industrial Vision Computing Platform Selection Guide
Choose the right industrial computing platform based on camera count, AI model complexity, and I/O requirements.
| Application | Cameras | AI Compute & Architecture | Platform / Model | Core Engineering Advantage |
|---|---|---|---|---|
| Entry-level inspection | 1-2 GigE | 32 TOPS (ARM RK3588J) | AE-3588BT | Fanless NPU inference for compact, power-efficient deployments. |
| Multi-camera AOI | 4-8 GigE/CXP | 50-100 TOPS (X86 + GPU) | AX-130BT / AX-134BT | Exclusive Modular Mainboard allows for rapid, customized I/O expansion without requiring complete system recertification. |
| High-speed line-scan | 2-4 CXP-12 | 150+ TOPS (X86 + GPU) | AX-760EBT + RTX 4080 mxm | Sustained PCIe bandwidth and buffering to prevent burst-data frame drops. |
| Semiconductor fab | Multi-frame grabber | 275+ TOPS (X86 + Multi-GPU) | AX-530EBT + Multi-GPU | Unrestricted parallel compute for nanometer-scale deep learning models. |
Key Specifications of Industrial-Grade Vision PCs
Production-reliable vision systems require purpose-built industrial computing platforms—not repurposed consumer PCs.
<10ms End-to-End Latency
Complete vision pipeline from trigger to reject actuation within 10ms for high-speed production lines.
4,000V Galvanic Isolation
Industrial-grade I/O isolation prevents ground loops and ensures reliable operation in high-EMI environments.
24/7 Production Reliability
Thermal design for 50°C ambient continuous operation with redundant cooling and throttling protection.
10 Year Supply Assurance
Locked BOM and long-term component availability commitment for production lifecycle stability.
Vision System Integration & Project Delivery Path
From requirement analysis to production deployment—a structured approach to vision system integration.
Requirement Review
Camera interface, resolution, frame rate, AI model complexity, and I/O requirements analysis.
Architecture Proposal
Platform selection, frame grabber configuration, GPU sizing, and thermal design specification.
Integration & Validation
Camera driver integration, AI model deployment, I/O timing verification, and latency measurement.
Production Deployment
Factory acceptance testing, production line integration, and ongoing technical support.
Stop Dropping Frames.
Scale Your Vision Pipeline.
Don't let thermal throttling or PoE bandwidth bottlenecks compromise your inspection accuracy. Tell us your camera setup (GigE/USB3) and AI inference model. Our engineers will outline a deterministic, thermal-stable edge compute architecture tailored to your line speeds.
- Camera Topology & Bandwidth Review
- GPU/NPU Thermal Sizing
- 48-Hour Blueprint Delivery
