How to Power an Industrial PC in a Vehicle (9–36V, Ignition, Protection)
A vehicle’s DC supply is one of the most abusive environments an embedded computer will ever see. Here’s what it actually takes: 9–36V wide input, ignition control, battery protection, and transient protection to ISO 7637-2 / ISO 16750-2.

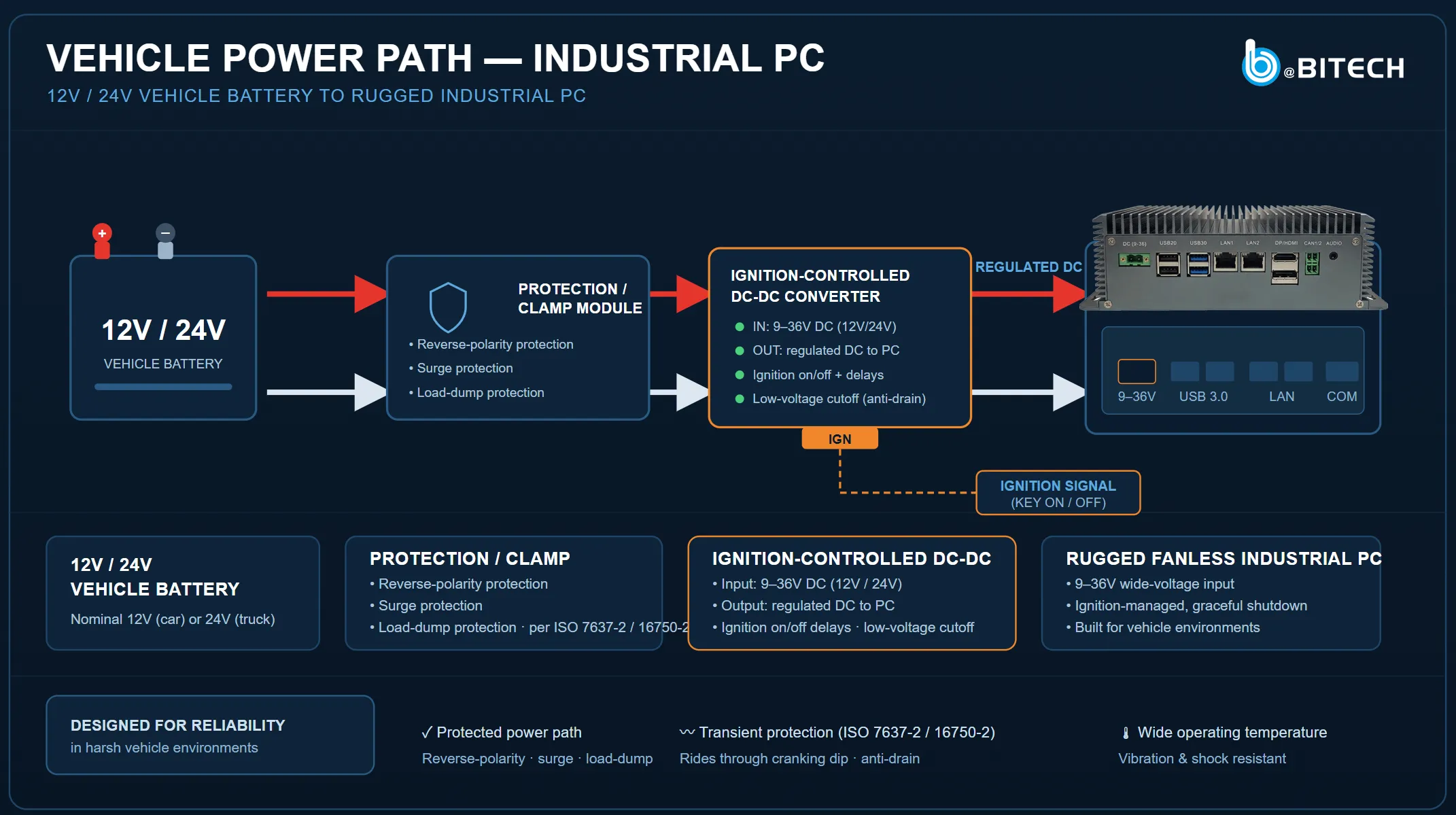

A correct in-vehicle power architecture: battery → protection → ignition-controlled DC-DC → clean rails for the PC.
Table of Contents
Powering an industrial PC in a vehicle takes more than a 12V wire. A vehicle’s DC supply is electrically hostile — load-dump surges, cranking dips, reverse polarity and switching transients that destroy consumer power stages. A proper in-vehicle PC uses a 9–36V wide-range input (covering 12V cars and 24V trucks), ignition sensing with timed on/off delays, low-voltage battery protection, and transient protection to ISO 7637-2 / ISO 16750-2.
Get those four right and the computer boots with the key, survives the alternator, and never flattens the battery. A PC that ran perfectly on a bench but reboots on cranking or corrupts its filesystem overnight doesn’t have a software problem — it has a power problem.
Why you can’t just wire a PC to the battery
The “12V” or “24V” label on a vehicle battery describes its resting voltage, not what appears on the wire. In practice the supply swings widely and violently:
- Engine cranking drops the bus voltage sharply for tens of milliseconds as the starter draws hundreds of amps. A PC wired naively brown-outs and reboots every start.
- Load dump — the alternator charging while the battery connection is suddenly lost — produces the highest-energy transient in the vehicle, historically tens to hundreds of volts.
- Switching inductive loads (relays, solenoids, motors, wipers) inject fast voltage spikes onto the supply lines.
- Reverse polarity happens whenever the battery or a jump lead is connected backwards.
- Sustained overvoltage appears from a 24V jump-start on a 12V system or a failed regulator.
A consumer PSU expects a clean, regulated rail. Feed it a vehicle bus and it’s only a matter of time. A real in-vehicle power stage is engineered to absorb, clamp, or ride through every one of these.
The 9–36V wide-input range
The first specification to get right is the input range. Passenger cars and vans run nominal 12V systems; trucks, buses, construction and agricultural equipment run 24V. A single 9–36V wide-input design covers both nominal systems and their real-world extremes — the low end holds the PC up through cranking sag, and the high end tolerates charging voltage and moderate overvoltage.
Buying a 9–36V unit means one SKU deploys across a mixed fleet of 12V and 24V vehicles, and the same computer survives the low-voltage cranking dip that a fixed 12V-only supply would brown out on. If a vendor only offers a narrow 12V input, it was not designed for vehicles.
Ignition control: powering on and off with the key
A vehicle PC must behave like every other device on the dashboard: on with the key, off with the key — but gracefully, and without draining the battery. That’s what ignition control (ignition sensing) provides, using the vehicle’s ACC/IGN line as a signal input separate from the main power feed.
Timed power-on delay
The PC waits a configurable interval after ignition-on before booting, so it doesn’t start during the cranking dip.
Timed power-off delay
When the ignition turns off, the PC keeps running for a configurable period, then triggers a graceful OS shutdown rather than a hard power cut.
Anti-drain
Because shutdown is clean and the delay is bounded, the PC stops drawing from the battery when the vehicle is parked.
Programmable on/off delays matter: a fleet-telematics box might shut down 30 seconds after key-off, while a surveillance or cold-chain logger might stay alive for hours. Both need the delay to be a setting, not a fixed value.
The protection suite: what a vehicle power stage must survive
The transient environment is standardized. Two ISO standards define it, and a serious in-vehicle PC states compliance with them: ISO 7637-2 covers electrical transients conducted along the supply lines (fast spikes from switching inductive loads), and ISO 16750-2 covers electrical loads including load dump, overvoltage, reverse polarity, and cranking.
| Hazard | What causes it | Governing standard | What the power stage must do |
|---|---|---|---|
| Load dump | Alternator charging when the battery connection is lost | ISO 16750-2 (Pulse 5a/5b) | Clamp/absorb the surge (≈$35V$ suppressed, higher unsuppressed) without passing it downstream |
| Cranking dip | Starter draws heavy current at engine start | ISO 16750-2 (cranking) | Ride through the low-voltage sag without rebooting |
| Reverse polarity | Battery or jump leads connected backwards | ISO 16750-2 (§4.7) | Block reverse current; no damage |
| Conducted transients | Switching relays, motors, solenoids | ISO 7637-2 (Pulse 1/2a/2b/3a/3b) | Filter and clamp fast spikes |
| Sustained overvoltage | 24V jump on a 12V system; regulator fault | ISO 16750-2 (§4.3) | Survive prolonged overvoltage |
Note that load-dump energy scales with system voltage: a 24V commercial-vehicle system produces a substantially higher-energy load dump than a 12V car, so a power stage rated only for 12V duty is not automatically safe on a 24V truck.
Battery protection: don’t flatten the vehicle
Ignition control handles the normal park cycle, but a robust design adds a second safety net: low-voltage protection (a battery guard). If the battery voltage falls below a set threshold — a vehicle left unused for days, a marginal battery — the PC shuts down and disconnects rather than discharging the battery to the point the vehicle won’t start. On a fleet, “the van won’t start because the logger drained the battery” is a call nobody wants, and a configurable undervoltage cutoff prevents it.
The power path, end to end
Put together, a correct in-vehicle power architecture looks like this, in order from the battery inward:
- 1
Battery / vehicle bus
9–36V, dirty and unregulated
- 2
Protection front-end
Reverse-polarity block, load-dump clamp, overvoltage and transient suppression (ISO 7637-2 / 16750-2)
- 3
Ignition-controlled switch
Reads the ACC/IGN line; applies power-on and power-off delays
- 4
Wide-range DC-DC regulation
Converts the surviving 9–36V into clean rails for the PC
- 5
Low-voltage cutoff
Disconnects before the battery is over-discharged
- 6
The industrial PC
Now sees a clean, protected, ignition-managed supply
Everything before the final step is the difference between a computer that survives a vehicle and one that merely runs on a bench.
Specification checklist
When you specify an in-vehicle industrial PC, require these explicitly:
| Requirement | Why it matters |
|---|---|
| 9–36V wide input | One SKU for 12V and 24V fleets; rides through cranking sag |
| Ignition control (ACC sense) | On/off with the key without hard cuts |
| Programmable on/off delays | Boot after cranking; graceful shutdown after key-off |
| Low-voltage cutoff (battery guard) | Prevents deep-discharging the vehicle battery |
| Reverse-polarity protection | Survives backwards battery/jump connections |
| Load-dump + transient protection (ISO 7637-2 / 16750-2) | Survives the alternator and switching spikes |
| Fanless, wide-temperature build | Cabins and equipment bays run hot, cold, dusty and vibrating |
| Locking DC connector | Vibration will loosen anything that isn’t latched |
Where this fits BITECH
In-vehicle deployment is one of the environments our platforms are built for. Our systems take a 9–36V wide input with ignition control and programmable on/off delays, add reverse-polarity, load-dump and transient protection, and pair it with fanless, wide-temperature, galvanically isolated I/O so the computer survives both the power bus and the machines it talks to. It’s the same engineering behind our vehicle-mounted fleet computing deployment, backed by a 10-year lifecycle commitment so a fleet rollout isn’t re-qualified in two years.
FAQ
Q: What voltage do I need to power an industrial PC in a vehicle?
A: Use a computer with a 9–36V wide-input range. That single range covers both 12V vehicles (cars, vans) and 24V vehicles (trucks, buses, off-highway equipment), and its low end holds the PC up through the voltage sag when the engine cranks. A fixed 12V-only supply will brown out on cranking and can’t be used on 24V vehicles.
Q: Why can’t I connect an industrial PC directly to the vehicle battery?
A: Because the vehicle bus is electrically hostile. Engine cranking drops the voltage sharply, load dump can spike to hundreds of volts, switching relays and motors inject fast transients, and reverse polarity or a 24V jump-start can apply damaging voltages. A consumer power supply expects a clean rail and will eventually fail; an in-vehicle power stage clamps, filters, and rides through these events.
Q: What is ignition control on a vehicle PC?
A: Ignition control (ignition sensing) lets the PC power on and off with the vehicle key using the ACC/IGN line as a signal. It adds a timed power-on delay so the PC boots after cranking, and a timed power-off delay so that when the key turns off the PC performs a graceful OS shutdown instead of a hard power cut — which protects the filesystem and prevents the computer from draining the battery while parked.
Q: What is load dump and why does it matter?
A: Load dump is the transient that occurs when the alternator is charging and the battery connection is suddenly lost. It is the highest-energy disturbance on the vehicle bus and is defined by ISO 16750-2 (Pulses 5a/5b). Without a power stage designed to clamp or absorb it — especially on higher-energy 24V systems — load dump can destroy downstream electronics.
Q: How do I stop a vehicle PC from draining the battery?
A: Two mechanisms. Ignition control shuts the PC down a configurable interval after the key turns off, and a low-voltage cutoff (battery guard) disconnects the PC if the battery falls below a set threshold. Together they ensure a parked vehicle isn’t left with a flat battery because the computer kept drawing current.
Q: Does a vehicle PC need 12V or 24V?
A: Both — which is why the answer is a 9–36V wide input. Passenger cars and vans are 12V nominal; trucks, buses and heavy equipment are 24V nominal. A 9–36V design runs on either and tolerates the cranking dips and charging overvoltage of both, so one computer covers a mixed fleet.
