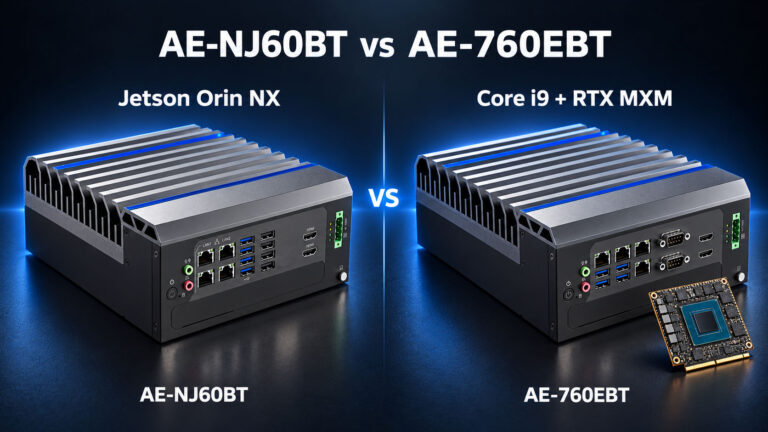

AE-NJ60BT vs AX-760EBT: NVIDIA Jetson Orin NX vs. x86 RTX MXM Edge AI Platforms
An in-depth hardware engineering review comparing dedicated ARM-based AI inference appliances with workstation-class x86 comprehensive compute systems for AMR and AOI vision applications.
These two platforms answer fundamentally different engineering questions. The AE-NJ60BT is a power-efficient, ARM-based AI inference nodeoptimized for deploying trained vision/AI models in fanless, vehicle-grade environments. The AE-760EBT is an x86 comprehensive compute workstation — a single chassis that runs Windows/Linux applications, heavy multi-stream vision, generative AI on the edge, and traditional industrial software simultaneously.
Edge AI Systems Positioning: Dedicated ARM Appliance vs. Comprehensive x86 Workstation
AI Inference
AE-NJ60BT Power-Efficient ARM Jetson Orin Inference Node
Dedicated edge AI appliance. Up to 157 TOPS on Orin NX Super. Ideal where the workload is mostly model inference on camera streams, with low power, single-fan cooling, and -40°C to +70°C deployment.
- • Compact, low-power (≤60W)
- • Native GMSL2 / MIPI camera ingress
- • JetPack / CUDA / TensorRT / DeepStream
- • AMR/AGV, in-vehicle, outdoor edge
Comprehensive Compute

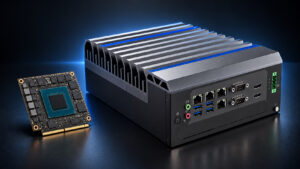

AE-760EBT Workstation-Class Intel i9 + RTX MXM GPU Server
x86 workstation-class edge server. Intel Core i9-13900 (24C/32T) + RTX 4060–5090 MXM (up to 80 TFLOPS FP32). One box runs CPU-heavy logic, multi-stream vision AI, and generative AI on the edge.
- • Full x86 Windows / Linux ecosystem
- • MXM-class discrete GPU (CUDA, TensorRT, OpenVINO)
- • Heavy multi-camera vision + LLM inference
- • Smart manufacturing, MV/AOI, edge LLM nodes
Core Engineering Specifications: Jetson SoM vs. Discrete MXM GPU Module
| Engineering Factor | AE-NJ60BT | AE-760EBT | Engineer Note |
|---|---|---|---|
Architecture | ARM 64-bit (Jetson Orin SoM) | x86-64 (Intel 13th Gen Core) | Decides OS / application portability. |
CPU | 6–8 ARM Cortex-A78AE @ up to 2.0 GHz | Intel Core i9-13900 (24C / 32T, up to 5.6 GHz) | x86 wins decisively for CPU-bound logic. |
AI Compute | Up to 157 TOPS (Orin NX Super, INT8) | RTX MXM up to 80 TFLOPS FP32, 300 TOPS INT8 | RTX MXM is far stronger for training, large models, and FP precision. |
Memory | 8 / 16 GB LPDDR5 (unified, soldered) | Up to 128 GB DDR5 SO-DIMM (system) + GPU VRAM ( 16GB) | Larger RAM enables databases, LLMs, multi-app stacks. |
Camera Ingress | 4-lane MIPI CSI or 4× GMSL2 (native) | 4× 2.5GbE (GigE Vision / RTSP) + USB 3.2 industrial cameras | NJ60BT for embedded sensors; 760EBT for high-bandwidth GigE Vision lines. |
Networking | 4× GbE (1× SoM + 3× Intel i210-AT) | 4× 2.5GbE + optional 10GbE | 760EBT moves more frames per second per camera. |
Software Stack | JetPack (Ubuntu), CUDA, TensorRT, DeepStream, ROS2 | Windows 11 / Ubuntu, CUDA, TensorRT, OpenVINO, full x86 ISV apps | 760EBT runs legacy Windows MV / SCADA / PLC tools natively. |
Cooling | Active — 1× smart PWM fan (low-noise) | Active — dual 80mm fans (CPU + MXM GPU) | 760EBT dissipates significantly more heat by design. |
Operating Temp | -40°C to +70°C (wide-temp) | -10°C to +55°C | NJ60BT is the only option for outdoor / vehicle deployment. |
| Power Input | DC 9–36V | AC 100–240V or DC 24V, up to 450W peak | NJ60BT runs off battery; 760EBT needs cabinet power. |
Form Factor | Compact fan-assisted box, vehicle-mountable | Workstation-class chassis, control-cabinet / rack mount | Mechanical envelope often forces the choice. |
| Typical Deployment | AMR/AGV perception, in-vehicle ADAS R&D, outdoor edge AI | Multi-line AOI, smart factory edge server, edge LLM / generative AI node | Inference appliance vs general-purpose compute. |
AI Workload Performance Mapping (YOLO Inference, LLM & Legacy MV)
| Workload | AE-NJ60BT | AE-760EBT |
|---|---|---|
| 4× 1080p real-time YOLO inference | Excellent (target use case) | Excellent (with headroom for more) |
| 8–16 stream multi-model vision | Limited by memory / TOPS | Excellent — RTX MXM scales |
| Edge LLM (7B–13B) inference | Possible only at small quantized models | Native fit (16GB VRAM, 128GB DDR5) |
| Heavy CPU SCADA / Windows MES app | Not suitable (ARM) | Native (x86 Windows) |
| In-vehicle / outdoor cabinet | Designed for it (-40°C to +70°C) | Indoor cabinet only |
| Battery-powered AMR | Yes (DC 9–36V, low power) | No (high power, AC preferred) |
Edge AI Hardware Selection Matrix: Custom OEM/ODM Integration Guidelines
Choose AE-NJ60BT if:
- •The workload is dominated by model inference, not general application logic
- •You need GMSL2 / MIPI cameras close to the sensor
- •The platform must run from battery / DC 9–36V
- •Deployment is in-vehicle, outdoor, or wide-temp
- •The team is committed to JetPack / CUDA / TensorRT
Choose AE-760EBT if:
- •You need x86 + Windows for legacy MV, SCADA, MES, or PLC stacks
- •Vision uses many GigE Vision / USB3 industrial cameras
- •You need to run edge LLMs / generative AI with 16GB VRAM and 128GB RAM
- •One chassis must consolidate CPU compute + GPU AI + database
- •Deployment is an indoor control cabinet with AC power
Performance figures are vendor-specified for the listed configurations. Sustained throughput, latency, and thermal headroom should be validated against your specific model, camera count, ambient temperature, and duty cycle in joint engineering review before BOM lock.
