Rugged Industrial Touch Computer
RU-1010BT-A01 10.1″ Rugged Industrial Touch Panel Computer
A 5000mAh battery-powered RK3568 industrial touch computer designed for harsh and semi-mobile environments requiring MIL-STD-810G shock resistance and reliable HMI access.
- Provides operator-facing HMI in rugged industrial environments
- Supports semi-mobile operation with built-in battery
- Designed for field deployment, vehicles, and harsh locations
Rugged RK3568 Touch Computer for Harsh and Semi-Mobile Industrial Use
The RU-1010BT-A01 combines industrial HMI functionality with a rugged mechanical design engineered for harsh operating conditions. Built on the Rockchip RK3568 ARM platform, it delivers reliable performance with low power consumption. The integrated 5000mAh battery enables mobile or temporary installations without requiring constant external power. Aviation connectors for power and I/O improve connection reliability under vibration and shock. This platform is suited for field equipment, vehicle mounting, logistics systems, and outdoor industrial environments—applications where standard fixed Panel PCs (AP series) cannot meet environmental or mobility requirements.

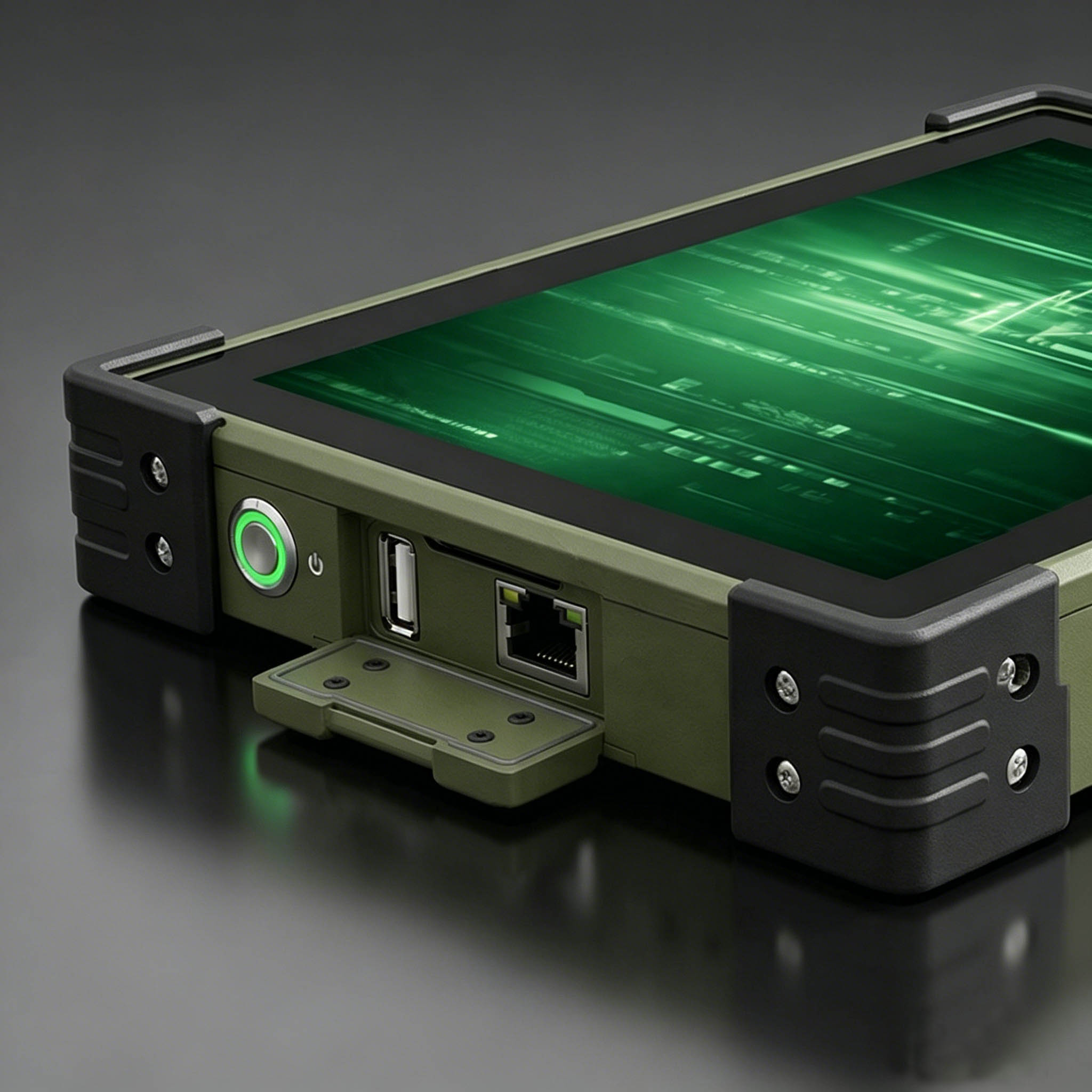

Industrial Connectivity: Zero-Failure Aviation Locking
In industrial vehicle and field-deployed environments, standard RJ45 or DC jacks are the weakest links, prone to signal loss due to mechanical vibration and shock.
The RU-1010BT-A01 utilizes Aviation-grade locking connectors. This engineering choice is not about convenience; it is about eliminating signal loss caused by vibration, ensuring 100% uptime for mission-critical mobile machinery.
Mission-Critical Integrity
Vibration-proof locking mechanism for stable I/O and power delivery.
System Uptime Protection
- ✅ Instant Failover: Protects against power transients.
- ✅ No-Reboot Operation: Maintains state during engine start.
- ✅ Graceful Shutdown: Secures data in power-loss scenarios.
Intelligent Power Redundancy
The integrated 5000mAh lithium battery is not merely a convenience feature; it is an industrial power-redundancy mechanism.
It acts as an internal UPS to bridge the gap during power transitions—such as vehicle engine ignition or external grid instability—preventing system reboots and ensuring that sensitive industrial monitoring or AGV navigation tasks continue without interruption.

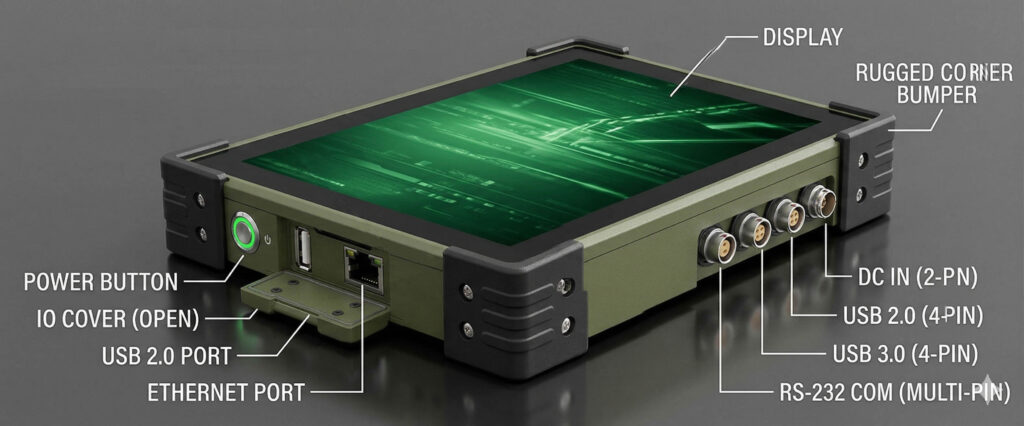

RU-1010BT-A01 Rugged Industrial Touch Panel PCs Interface
RU-1010BT-A01 Hardware Architecture & Key Engineering Highlights
RK3568 ARM Platform
Quad-core Cortex-A55 @ 2.0GHz for reliable industrial operation
1.0 TOPS Edge NPU Acceleration
Integrated NPU for basic AI acceleration and edge inference
10.1″ FHD Industrial Display
1920×1080 FHD with 10-point capacitive multi-touch
IP65 Waterproof & Dustproof Protection
Dust-tight and water-resistant protection for harsh environments
5000mAh Battery
Built-in battery supporting 4–5 hours of mobile operation
Aviation Connectors
Vibration-resistant power and I/O connections: 1× RS232, 1× USB 3.0, 1x USB2.0, 1x DC IN
Fanless Unibody Design
Cable-less, jumper-less aluminum enclosure for reliability
RU-1010BT-A01 Technical Specifications
| Processor | Rockchip RK3568, Quad-Core Cortex-A55 @ 2.0GHz |
| GPU | Mali-G55 |
| NPU | 1.0 TOPS |
| Memory | 4GB DDR4 (up to 16GB) |
| Storage | 64GB eMMC (up to 128GB) |
| Display | 10.1″ HD 1920×1080, 16:10, 500–1000 nits |
| Touchscreen | 10-point capacitive touch, ≥6H hardness |
| Ethernet | 1× Gigabit LAN |
| Serial | 1× RS232 (Aviation connector) |
| USB | 1× USB 3.0, 1x USB2.0 (Aviation connector) |
| Wireless | M.2 E-Key (Wi-Fi), M.2 B-Key (4G/5G) + Slim slot |
| Battery | 5000mAh / 3.7V (4–5 hours) |
| Power Input | DC 9–36V (Aviation connector) |
This table supports early-stage system verification. For full specifications, please refer to the datasheet.
Environmental Durability & Rugged Mechanical Design
The RU-1010BT-A01 is engineered for deployment in demanding industrial and outdoor environments where standard computing equipment cannot survive.
IP65 Waterproof & Dustproof Protection
Dust-tight and water-resistant front panel
MIL-STD-810G Shock & Vibration Compliance
Shock and vibration resistance compliance
Wide Operating Temperature (-40°C to +55°C)
Wide operating temperature range
Vehicle-Mounted & Field Deployment Ready
Outdoor and vehicle-mounted deployment
Designed for Semi-Mobile Industrial Deployment
Unlike fixed industrial Panel PCs, the RU-1010BT-A01 supports semi-mobile operation for applications requiring flexibility in deployment location.
Battery Powered
5000mAh enables operation without constant external power
Mobile Ready
Mobile carts, vehicles, and temporary installations
Wide Power Input
9–36V DC supports vehicle and industrial power systems
Flexible VESA/Wall Mounting & Mechanical Integration
The compact and rugged enclosure design enables flexible integration across diverse industrial mounting scenarios.
Compact Size
254 × 175 × 30 mm dimensions
Lightweight
Approximately 1.8 kg weight
Multiple Mounts
Wall mount and VESA mount support
Fanless Design
Unibody aluminum enclosure
OEM/ODM Platform Customization & OS Support
The RU-1010BT-A01 platform supports OEM customization and long-term industrial project requirements.
Multi-OS Support
Android 12, Ubuntu 22.04, Debian 11
SDK & Customization
Optional SDK and OS customization available
Platform Scalability
Hardware scalability for project growth
Long Lifecycle
Extended support for industrial projects
Related Industrial Computing Platforms
Industrial Panel PCs
Fixed, cabinet or panel-mounted HMI terminals for stationary industrial installations
AI-Ready Panel PCs
Intelligent HMI platforms with higher AI capability for vision-assisted operation
Rugged Tablets
Fully mobile handheld devices for field personnel requiring maximum portability
RU-1010BT-A01 Technical FAQ
How does the 5000mAh battery function in industrial applications?
The 5000mAh battery provides critical power redundancy. It acts as an internal UPS, ensuring the system remains operational during vehicle engine ignition, power grid switching, or sudden power transients, preventing data loss or system reboot.
What is the advantage of using aviation-grade connectors?
Unlike consumer-grade RJ45 or DC jacks, aviation connectors use threaded locking mechanisms. They eliminate connection failure caused by terminal fretting and vibration, ensuring a continuous, vibration-proof electrical contact in mobile machinery and harsh field environments.
What does MIL-STD-810G compliance guarantee?
Compliance ensures the device can withstand rigorous mechanical stress, including constant high-frequency vibration, mechanical shock (drops/impacts), and extreme temperature cycling. It validates the structural integrity for use in heavy transport and construction machinery.
How is reliability maintained in high-temperature field environments?
The device features a fanless aluminum unibody design. Heat is dissipated through the chassis via optimized thermal conduction paths, eliminating the point-of-failure inherent in active cooling fans and preventing dust ingress.
Can this device handle Edge AI vision tasks locally?
Yes. The RK3568 SoC includes a 1.0 TOPS NPU, capable of running local inference for object detection and simple image classification, allowing for real-time edge processing without the latency of cloud connectivity.
Is the 9-36V input protected against power surges?
Yes. The DC power input is designed with comprehensive protection against voltage transients, over-voltage, and reverse polarity, ensuring the device survives the unstable power delivery typical in industrial vehicle systems.
Can I integrate 4G/5G for remote fleet management?
Yes, the RU-1010BT-A01 includes an M.2 B-Key expansion slot and a dedicated SIM card slot, fully supporting 4G and 5G cellular modules for real-time remote monitoring and data synchronization.
What touch technology is used for gloves or wet hands?
We offer multi-point capacitive touch as standard, optimized for accuracy. For specific applications requiring operation with heavy gloves or in extreme moisture, custom resistive or glove-compatible touch calibrations are available upon request.
How does BITECH support software and BSP updates?
We provide a mature SDK and pre-validated BSP for Android 12 and Linux (Ubuntu 22.04/Debian 11). We offer long-term software support and guidance for OEM/ODM developers to ensure the platform meets specific project compliance requirements.
Is this platform available for long-term production runs?
Absolutely. BITECH manages this as a high-reliability industrial platform with a guaranteed 5–7 year lifecycle. We utilize rigorous PCN (Product Change Notification) protocols for all hardware modifications.
