AX-340BT — Fanless Network Security & SD-WAN Appliance
16 cores. 10 LAN ports. No fan.
A fanless network security and SD-WAN appliance for the edge of segmented networks. The AX-340BT’s 16-core Intel Atom C3958 drives packet processing across 10 LAN ports (6× 2.5GbE + 4× 10G SFP), running firewall/UTM, SD-WAN, VLAN segmentation and edge-routing workloads — with 4G/5G and Wi-Fi expansion, in a sealed cableless chassis. Fanless and cabinet-ready for temperature-controlled racks and enclosures.
- 10 LAN total — 6× Intel i226-V 2.5GbE plus 4× Intel X553 10G SFP for segmented links and aggregated uplinks
- 16 cores at 31W TDP — Atom C3958 parallel throughput for packet processing, cooled entirely by the chassis
- Out-of-band RJ45 console — provision or rescue the appliance without a working data link
CE · FCC · RoHS · ISO 9001

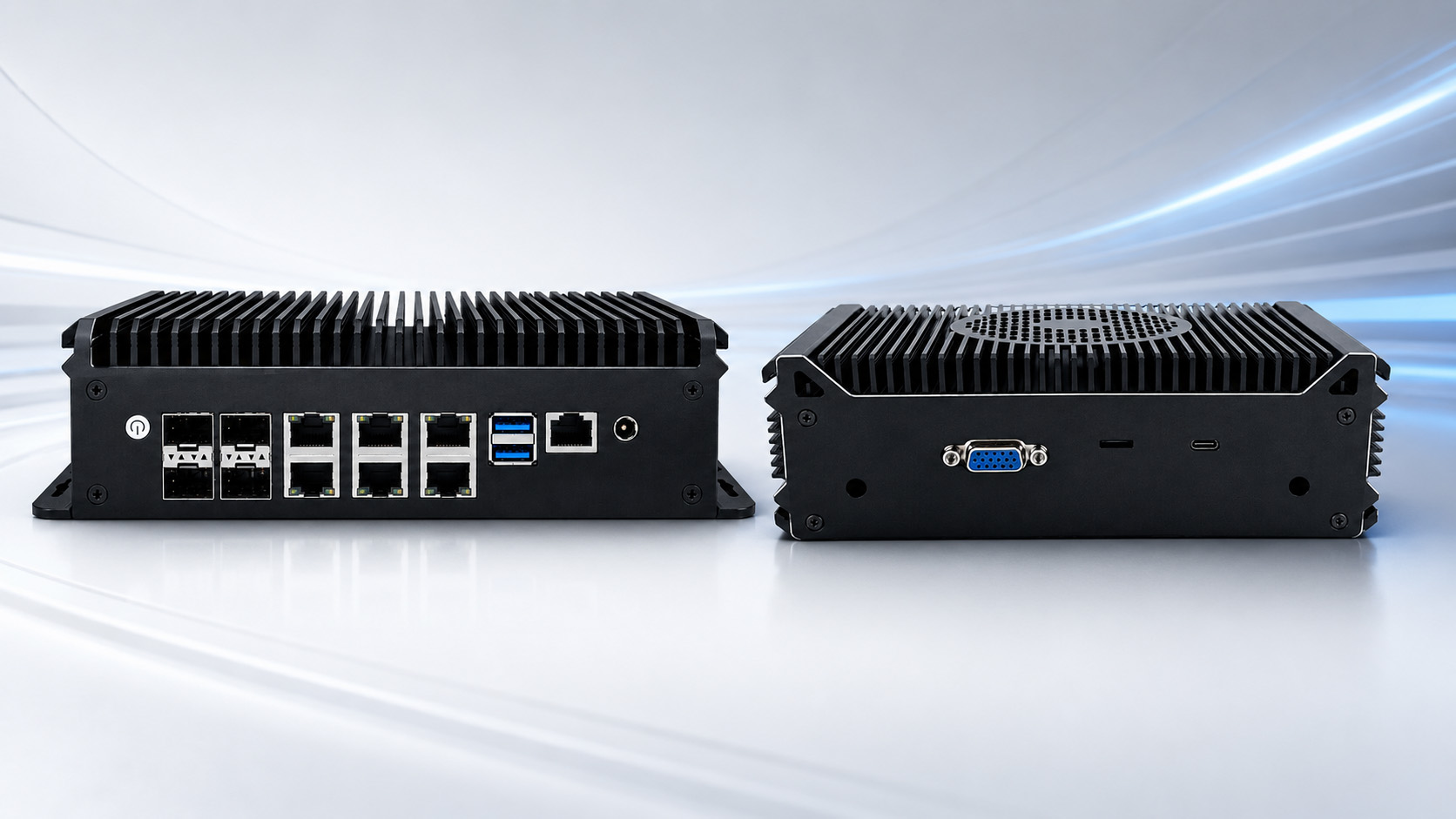

Front I/O visible: 6× RJ45 2.5GbE, 4× 10G SFP cages, console port.
Positioning: cabinet / light-industrial — stated honestly
The AX-340BT is designed for temperature-controlled racks, cabinets and indoor light-industrial spaces. Its 12V DC input, 0°C to +40°C operating range and EMC scope (EN 61000-3-2 / EN 61000-3-3) place it in the light-industrial tier — not on a harsh factory floor, outdoors, or in a vehicle. If your deployment needs wide-temperature operation, 9–36V input or industrial-environment EMC (EN IEC 61000-6-2 / 6-4), we will point you at a true-industrial platform instead of stretching this spec.
What This Platform Is For
Built for network security and SD-WAN
Ten LAN ports — 6× Intel i226-V 2.5GbE and 4× Intel X553 10G SFP — let the AX-340BT terminate multiple segmented links and aggregate 10G uplinks in one fanless box, running firewall/UTM, SD-WAN, VLAN segmentation and edge-routing workloads. A natural host for network-function and security software on a general-purpose x86 platform.
16 cores, no fan
An Intel Atom C3958 (16 cores / 16 threads, 2.0GHz, 16MB L3, 31W TDP) provides the parallel throughput that packet-processing and multi-service networking workloads demand, cooled entirely by an extruded-aluminium unibody chassis — no fan, and no dust-ingress path into the enclosure.
Wireless-ready expansion
M.2 B-Key (PCIe + USB 3.0) for 4G/5G and M.2 E-Key (PCIe) for Wi-Fi, plus a SIM slot — ready for connected and remote-managed deployments.
Out-of-band console access
A dedicated RJ45 console port gives direct CLI access for initial provisioning and recovery — configure or rescue the appliance even when the network is down or misconfigured, without depending on a working data link.
Clean, low-maintenance install
Fanless, cableless, jumperless unibody design with wall / side / DIN-rail / VESA mounting, 12V DC input via Phoenix terminal, and 2-pin remote power on/off — built to sit in a rack or enclosure and run unattended.
Product Photos (For Engineering Evaluation)
Real photos to verify port layout, SFP cages and mounting options.

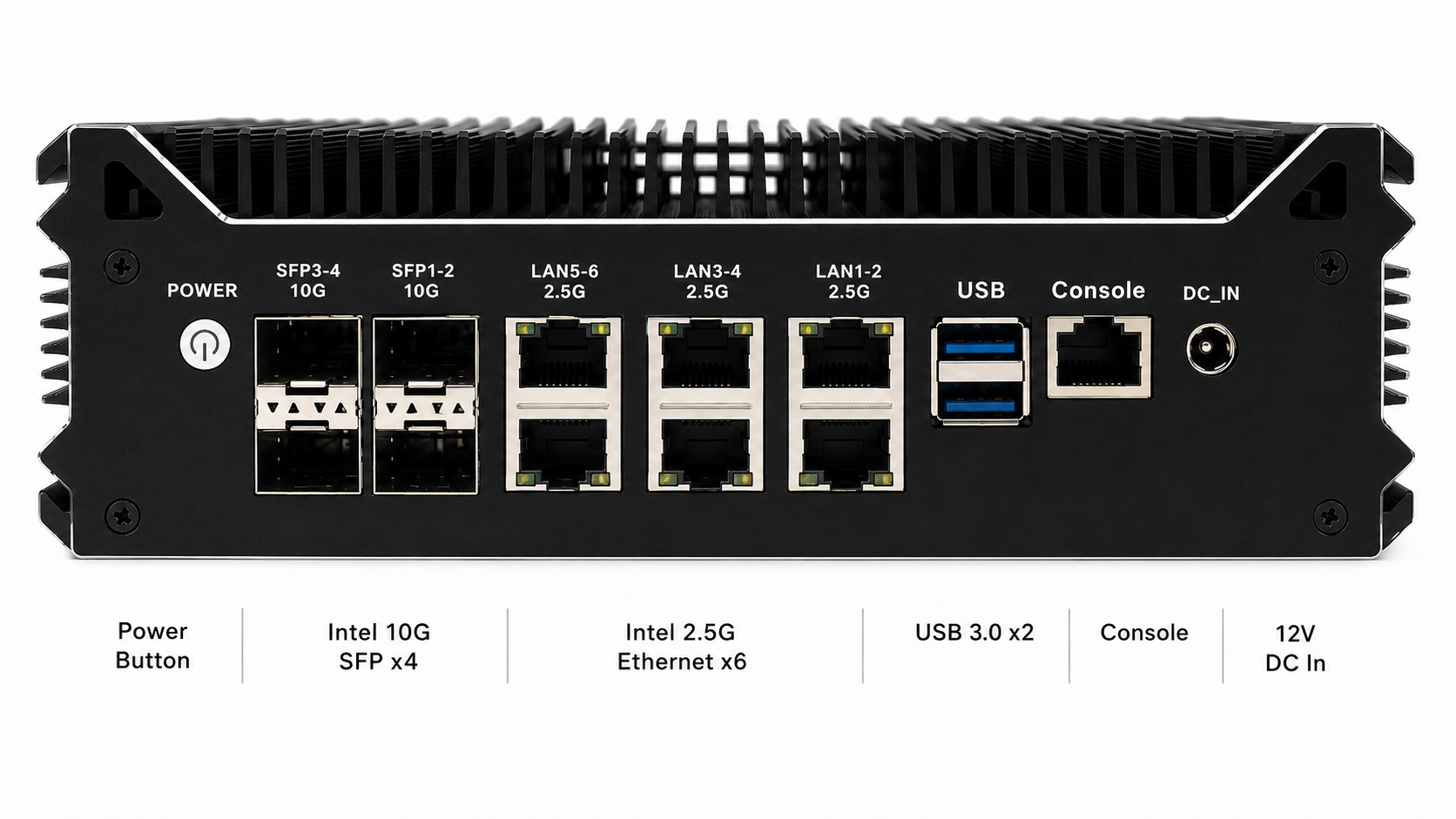

Front I/O Panel (6× 2.5GbE + 4× 10G SFP)
Rear Panel (12V Phoenix Terminal, Console)

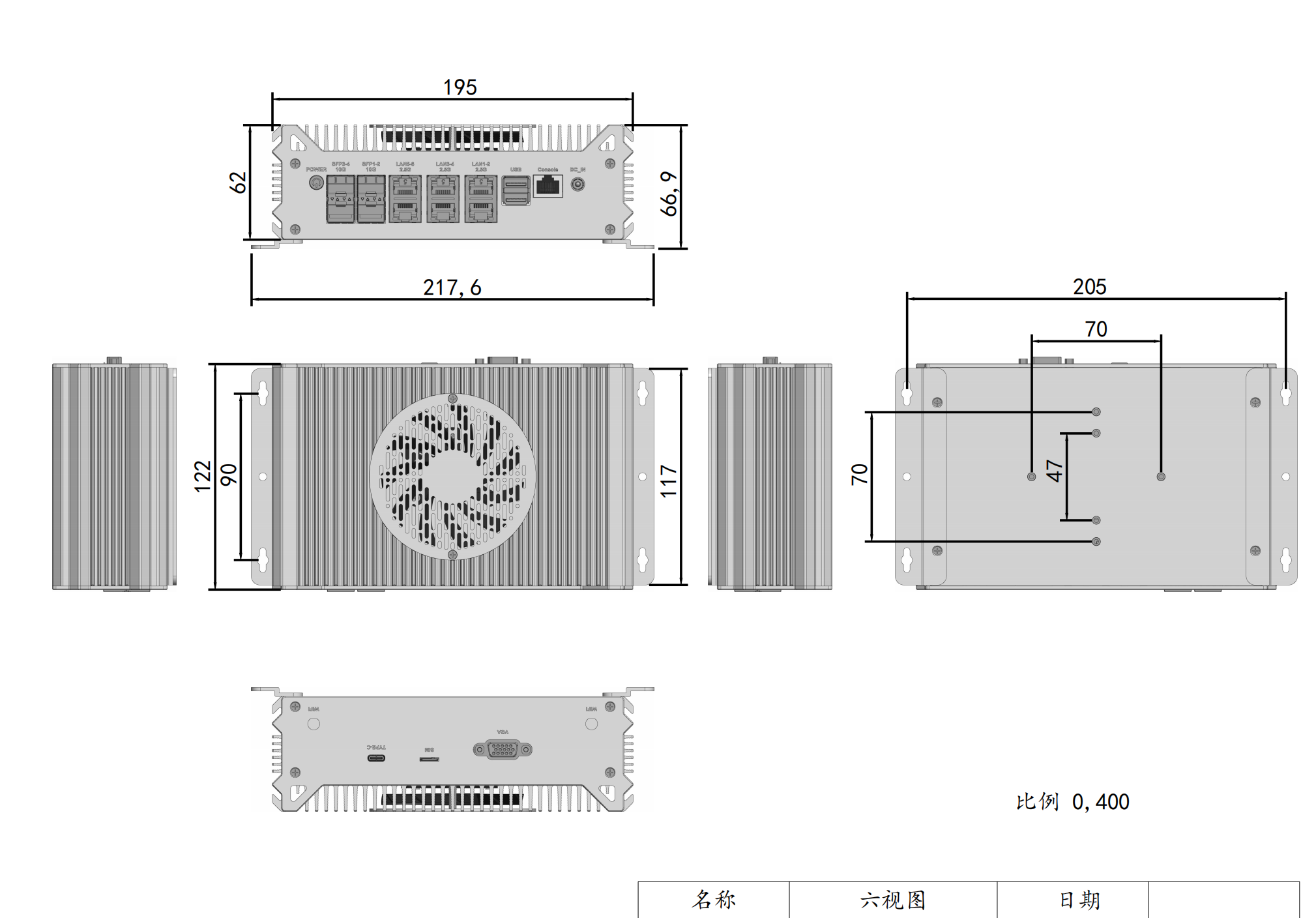

Atom C3958 network appliance dimensions
Key Engineering Highlights
10 LAN Ports
6× Intel i226-V 2.5GbE + 4× Intel X553 10G SFP for segmentation and uplink aggregation.
16-Core Atom C3958
16C/16T at 2.0 GHz, 16MB L3, 31W TDP — parallel throughput for packet processing.
RJ45 Console Port
Out-of-band CLI for provisioning and recovery independent of the data network.
4G/5G + Wi-Fi Ready
M.2 B-Key (PCIe + USB 3.0) with SIM slot, plus M.2 E-Key (PCIe) for Wi-Fi.
Storage Flexibility
2× M.2 2280 SATA plus onboard eMMC for a separate boot/recovery image.
12V DC Phoenix Input
Locking terminal with 2-pin remote power on/off for rack and cabinet installs.
0°C to +40°C
Validated by PassMark BurnInTest at 100% CPU and 2D/3D load with no thermal throttling.
Fanless · Cableless · Jumperless
Extruded-aluminium unibody chassis — no moving parts, no dust-ingress path.
Mounting Options
Wall / side / DIN-rail / VESA in a 218 × 122 × 67 mm, 2 kg chassis.
AX-340BT Specifications
Platform
| SKU | AX-340BT |
| Type | Fanless network appliance (cabinet / light-industrial) |
| Processor | Intel Atom C3958 — 16 cores / 16 threads, 2.0GHz, 16MB L3, TDP 31W |
| BIOS | AMI BIOS |
| Memory | 2× SO-DIMM, DDR4-2400 (dual-channel) |
| Storage | 2× M.2 2280 SATA · 1× eMMC |
| Graphics | ASPEED Graphics Family (WDDM) |
| Display | 1× VGA |
| OS | Windows 11 Pro · Ubuntu |
Network and I/O
| LAN | 6× Intel i226-V 2.5GbE + 4× Intel X553 10G SFP (10 LAN total) |
| Wireless / WWAN | 1× M.2 B-Key (PCIe + USB 3.0, 4G/5G) with slim slot · 1× M.2 E-Key (PCIe, Wi-Fi) · 1× SIM |
| USB | 2× USB 3.2 Gen1 Type-A (5Gbps) · 1× USB 2.0 Type-C |
| Console | 1× RJ45 console (out-of-band CLI) |
| Audio | 1× 3.5 mm combo jack |
Power and Mechanical
| Power input | 12V DC · Phoenix terminal · 2-pin remote power on/off |
| Dimensions | 218 \times 122 \times 67mm |
| Weight | 2kg |
| Mounting | Wall / Side / DIN-rail / VESA |
| Design | Fanless · cableless · jumperless · unibody |
| Power management | Auto power-on (after AC restore) · Wake-on-LAN · scheduled RTC power-on |
| Network boot | PXE / diskless boot |
Reliability and Compliance
| Operating temperature | 0°C to +40°C — validated by PassMark BurnInTest at 100% CPU plus 2D/3D graphics load with no thermal throttling |
| Storage temperature | -40°C to +80°C |
| Humidity | 95% RH @ 40°C, non-condensing |
| Environment | Designed for temperature-controlled racks, cabinets and indoor light-industrial spaces |
| Factory test | 100% inspected · 18-hour full-load burn-in on every motherboard, plus a further 18-hour burn-in on every complete unit · full serial-number traceability |
| EMC | EN 61000-3-2 / EN 61000-3-3 (power quality). For deployments requiring industrial-environment EMC (EN IEC 61000-6-2 / 6-4), consult us — this platform targets cabinet / light-industrial use. |
| Certifications | CE · FCC · RoHS · ISO 9001 |
Specifications reflect the AX-340BT engineering datasheet. Field-testing and configuration validation are recommended for every new deployment; request the engineering package for mechanical drawings and test reports.
Lifecycle, Warranty & Support
- Lifecycle — 5–7 years standard platform availability; up to 10 years for qualified OEM programs, subject to component availability and PCN/EOL management
- Warranty — 24 months (complete unit)
- Technical support — lifetime support for OS configuration and BIOS/firmware updates
OEM / ODM
| MOQ | 100 units for light customization |
| NRE | Quoted upfront, refundable at 2,000 units |
| Lead time | 35 days for light customization; NRE projects by scope |
Customization scope: I/O layout changes, wireless pre-integration, storage upgrades, front-panel branding, pre-loaded system images.
Scalable hardware platform solutions with optional SDK and OS customization for fast integration.
Related Solutions & Engineering Resources
Dive deeper into industry use cases and engineering guides relevant to this platform.
Application Solutions
Industrial Automation
Segmented OT networks and cabinet-mounted edge infrastructure.
Energy & Utility Automation
Substation and site-level network segmentation.
Industrial ODM
White-label appliance programs from platform to firmware.
Engineering Articles
Communication Mastery
Bridging Ethernet, serial and fieldbus networks.
Lifecycle Management
Fixed BOM control, PCN handling and long-term supply.
OEM / ODM Engineering
White-label firmware branding and SMBIOS customization.
Related Products
Compare adjacent models to validate your selection.
AX-320BT
Best for: 8-port 2.5GbE aggregation in true industrial conditions
8× 2.5GbE plus 4× isolated serial, wide 9–36V input and -20°C to +60°C operation — the harsh-environment branch, without 10G SFP
View ProductAX-134BT
Best for: Multi-LAN edge gateway with Intel AMT
4× GbE with out-of-band AMT management and CAN FD for automation networks; fewer LAN ports, wider temperature and voltage envelope
View ProductAX-234BT
Best for: Protocol gateway and edge compute
13th Gen Core i5 with Iris Xe for OPC UA / MQTT translation and inference; 2× 2.5GbE only — compute-led rather than port-led
View ProductAX-340BT · Support
Frequently asked questions
-
It's a fanless network security and SD-WAN appliance for the edge of segmented networks. With 16 cores and 10 LAN ports (6× 2.5GbE + 4× 10G SFP), it runs firewall/UTM, SD-WAN, VLAN segmentation, and edge-routing workloads, with 4G/5G and Wi-Fi expansion — designed for temperature-controlled racks and light-industrial cabinets.
-
Ten LAN ports in total: 6× Intel i226-V 2.5GbE and 4× Intel X553 10G SFP.
-
Temperature-controlled racks, cabinets, and indoor light-industrial spaces (0–40°C, 12V DC). For harsh-floor, outdoor, or vehicle deployments requiring wide-temperature operation and industrial-environment EMC, a different platform is recommended.
-
Yes. It supports auto power-on (automatic restart after a power outage), Wake-on-LAN to power on over the network, and scheduled RTC power-on to boot at set times. It also supports PXE / diskless boot for network provisioning and re-imaging, plus an RJ45 out-of-band console for recovery — designed for unattended cabinet deployments.
-
The AX-340BT has a dedicated RJ45 out-of-band console port for direct command-line access during initial provisioning and recovery — letting you configure or rescue the appliance even when the network is down or misconfigured.
-
No. It uses a fanless, cableless, jumperless unibody aluminum chassis that conducts heat through the enclosure — no moving parts, and no dust-ingress path.
-
Every unit is 100% inspected and undergoes an 18-hour full-load burn-in at motherboard level plus a further 18-hour burn-in as a complete unit, with full serial-number traceability.
Request a Quote
Send us your network topology — port counts, uplink speeds, VLAN and routing plan, NFV software stack, cabinet ambient temperature — and we will confirm the configuration and quote against it. MOQ 100 units for light customization; samples available for evaluation. Response within 2 business days from a hardware engineer.
