Modular Fanless Embedded Computer

AX-130BT Fanless Industrial PC: Modular Intel® 4th-14th Gen Core™ i3/i5/i7 Platform

Flagship 13th Gen Core™ i5 embedded platform featuring BITECH’s unique modular mainboard architecture. Equipped with dual native CAN FD (low/medium/high-speed adaptive), 6 COM, and dual Intel 2.5GbE for long-life industrial deployment.

Modular mainboard architecture — swap CPU modules across 4th–14th Gen without redesigning the system
Three-Less design — fanless, cable-less, jumper-less unibody aluminum chassis
Field-ready I/O — 2× CAN, 6 COM, 2× 2.5GbE, 9-36V DC wide input, -20°C to +60°C

Verify Configuration & I/O Download Datasheet

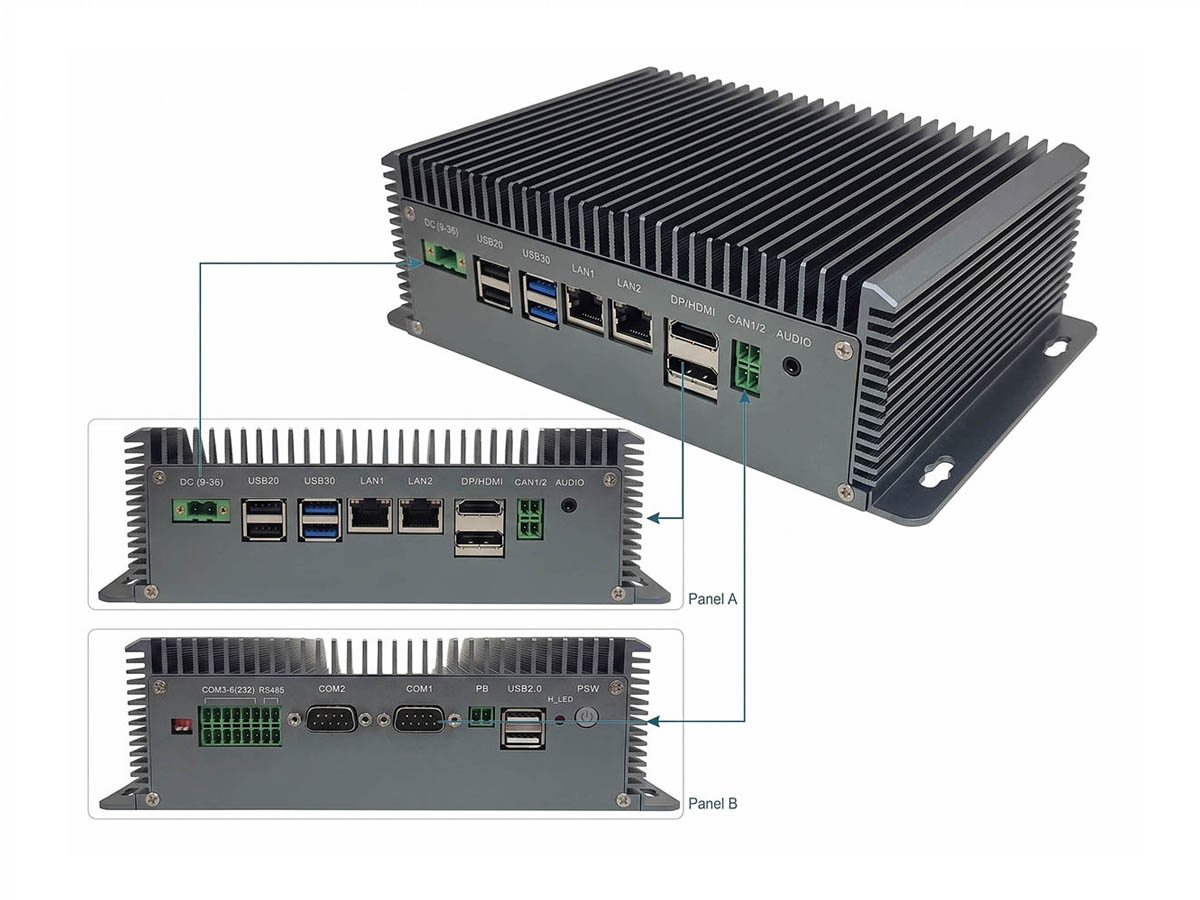

AX-130BT AX-130BT Fanless Industrial PC front view with dual CAN Bus

AX-130BT Modular Fanless Industrial PC

Long-Lifecycle Modular Embedded PC: Scale from 4th to 14th Gen Intel® Core™

The AX-130BT is built around a modular CPU mainboard that supports Intel® Core™ i3/i5/i7 processors from the 4th all the way to the 14th generation. The same chassis, the same I/O layout, the same mounting footprint — yet integrators can pick the exact compute tier their project needs today, and upgrade in-place years later without re-certifying the system.

The default configuration ships with the 13th Gen Intel® Core™ i5-1345U (10C/12T) and DDR5-5200 memory, paired with dual 2.5GbE, dual CAN bus, six COM ports and a wide 9-36V DC input with remote power on/off. Every interface is brought out directly from the mainboard — no internal cables, no jumpers, no fans — inside a unibody extruded-aluminum enclosure rated from -20°C to +60°C.

This makes the AX-130BT a long-life embedded platform for AGV/AMR controllers, multi-axis motion control, smart-manufacturing edge gateways and in-vehicle computing — projects where the BOM must remain stable for 5–7 years while compute requirements continue to evolve.

Core Industrial Features: Fanless Design, Dual CAN & 2.5GbE

Modular 4th–14th Gen CPU

One mainboard family covers a decade of Intel® Core™ i3/i5/i7 — default 13th Gen i5-1345U (10C/12T) with DDR5-5200.

Dual Native CAN FD + 6 COM

2× CAN bus, 2× full RS232/422/485 and 4× RS232 — direct connection to drives, PLCs and field sensors.

Dual 2.5GbE LAN

Intel I226-AT controllers — segregate real-time control traffic from supervisory and cloud uplink.

Fanless Unibody Aluminum

210 × 150 × 70 mm extruded chassis with multi-mount (wall / side / DIN-rail / VESA).

Rugged Hardware

-20°C to +60°C & EMC-Hardened Design

Wide 9-36 V DC Input

Phoenix terminal + remote power on/off — ready for 12V/24V cabinets and 24V/36V vehicle bus.

High-Density Connectivity: Dual CAN Bus, 6 COM & High-Speed LAN

AX-130BT Modular Fanless Industrial PC with CAN BUS

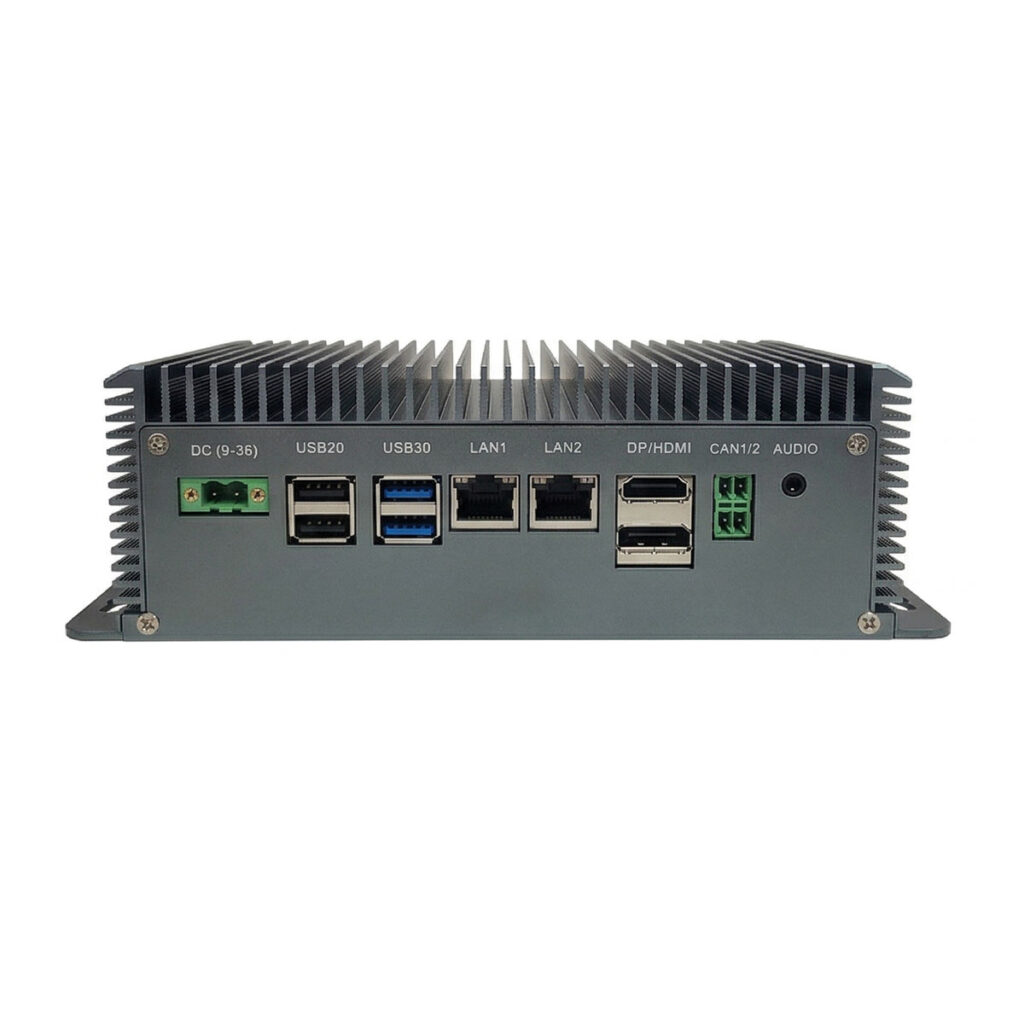

AX-130BT Modular Fanless Industrial PC Front Interface

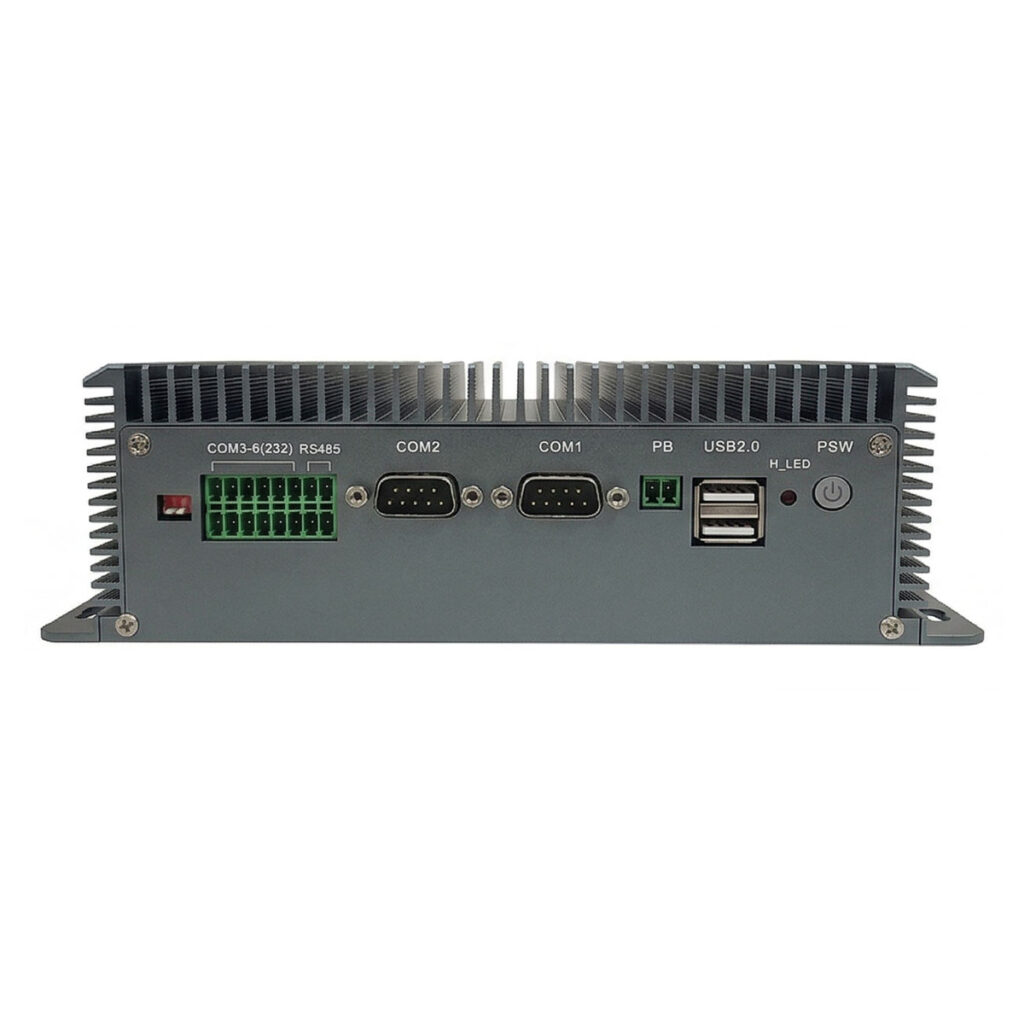

AX-130BT Modular Fanless Industrial PC Rear Interface

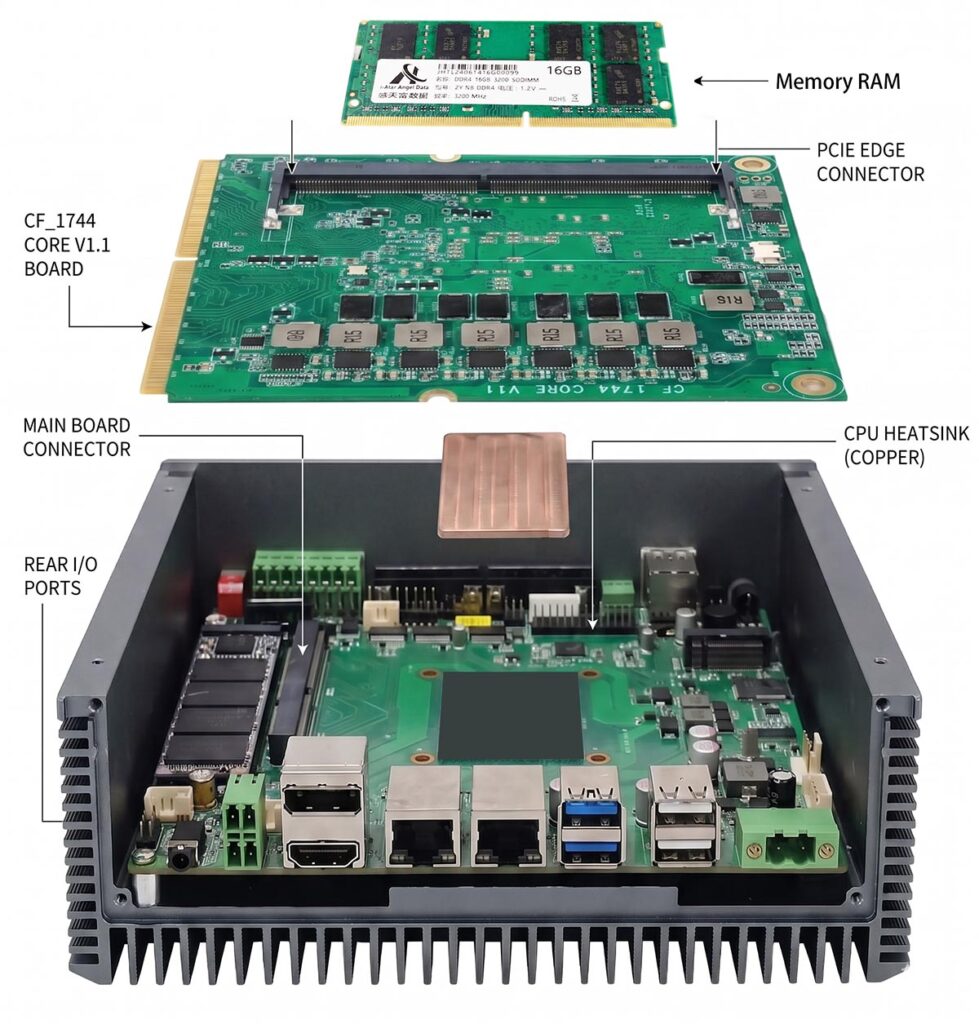

ax-130bt mainboard modular Gen 4th-14th explore

AX-130BT Modular Fanless Industrial PC Inside

Photos show actual product configuration. Custom I/O layouts are available for OEM projects.

Industrial Fieldbus (Dual CAN 2.0A/B & 6x COM Ports)

2× 2.5GbE LAN (Intel i226-V)
2× RS232/422/485 + 4× RS232 (6 COM)
2× CAN Bus (CAN 2.0A/B)

Next-Gen Storage & Display (DDR5, PCIe 4.0 & 4K Output)

USB 3.2 Gen1 + USB 2.0
HDMI 2.1 + DisplayPort
M.2 M-Key / B-Key / E-Key

AX-130BT Full Technical Specifications

CPU Platform	Modular mainboard – supports 4th–14th Gen Intel® Core™ i3/i5/i7
Default Processor	13th Gen Intel® Core™ i5-1345U (10 Cores / 12 Threads)
Memory	1× DDR5 SO-DIMM, up to 5200 MHz
Storage	1× 2.5″ SATA HDD/SSD or Half-slim SSD + 1× M.2 M-Key 2280 (PCIe 4×)
Graphics	Integrated Intel® Iris® Xe Graphics
Display	1× HDMI 2.1 + 1× DP 1.4a + 1× LVDS/eDP, up to 4K@60Hz
Ethernet	2× 2.5GbE LAN (Intel I226-AT)
Serial	2× RS232/422/485 + 4× RS232 (6 COM total)
CAN	2× Full-Speed CAN FD Channels (Native Low/Medium/High Speed Support)
USB	2× USB 3.2 Gen1 + 4× USB 2.0
Wireless Expansion	M.2 B-Key (4G/5G) + M.2 E-Key (Wi-Fi) + Slim slot
Security	TPM 2.0, AMI BIOS
Power Input	DC 9–36 V, Φ5.5×2.5 mm + Phoenix terminal, remote power on/off
Operating Temperature	-20°C to +60°C (with extended-temp peripherals)
Dimensions / Weight	210 × 150 × 70 mm / 1.8 kg
Mounting	Wall / Side / DIN-rail / VESA
Certifications	CE, UKCA, FCC, ICES-003 Class A; EN 61000-6-2/6-4
OS Support	Windows 11 Pro, Ubuntu

This overview supports early-stage system verification. For full electrical, mechanical, and environmental specifications, please refer to the datasheet.

Typical Application Scenarios

Target Applications: From AMR/AGV Controllers to Edge Gateways

Engineered for projects that need long-term CPU flexibility, deterministic fieldbus connectivity, and field-grade reliability inside a compact fanless chassis.

AGV / AMR Onboard Controller

Dual CAN bus links directly to motor drives and battery BMS, while 9-36V DC wide input and remote power on/off match 24V/36V vehicle power buses. The fanless, cable-less unibody chassis withstands continuous vibration on mobile platforms.

Multi-Axis Motion Control

10-core 13th Gen Intel® Core™ i5 with DDR5-5200 handles deterministic motion tasks; 2× CAN and 6 COM ports drive servo amplifiers, encoders and HMI panels from a single industrial node.

Smart Factory Edge Gateway

Aggregate PLCs, sensors and serial devices via RS232/422/485 and CAN, then bridge to MES/SCADA over dual 2.5GbE with optional 4G/5G and Wi-Fi via the M.2 expansion slots — ideal for unattended shop-floor cabinets.

In-Vehicle & Outdoor Cabinet Computing

-20°C to +60°C operating range, 15G shock and 1 Grms vibration tolerance, Phoenix terminal power and TPM 2.0 security make the AX-130BT a fit for special-purpose vehicles, EV chargers and roadside enclosures.

Designed for Reliable Cabinet Deployment

The AX-130BT’s compact footprint is specifically optimized for installation inside control cabinets where space is at a premium. The fanless thermal design eliminates moving parts that can fail or require maintenance, ensuring continuous operation in enclosed environments.

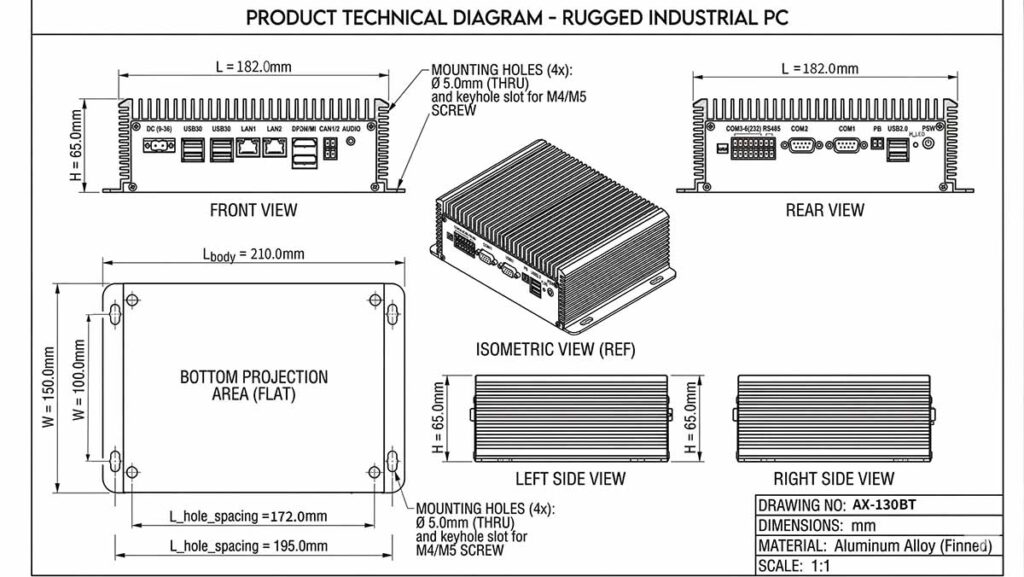

AX-130BT Modular Fanless Industrial PC diagram

AX-130BT Fanless Inudustrial Computer Diagram

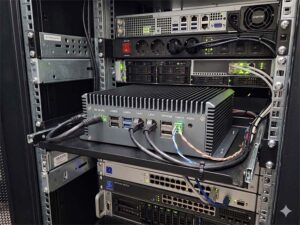

AX-130BT Modular Fanless Embedded Box PCAX-130BT Modular Fanless Embedded Box PC

AX-130BT Modular Industrial Box PC

Fanless aluminum enclosure for passive cooling in enclosed cabinets
100% 18-hour power-on burn-in test under load
Hardware watchdog for automatic system recovery
RTC with battery backup for time-critical applications
Wide voltage input (9–36V DC) for industrial power environments

OEM & System Customization Support

The AX-130BT platform supports OEM customization for batch deployment projects. Configuration options include CPU selection, interface adjustments, and OS pre-installation to match specific project requirements.

CPU and interface configuration based on project requirements
OS pre-installation and BSP customization (Linux, Windows)
5–7 year lifecycle availability with PCN/EOL management
Batch deployment support starting from 50 units

AX-130BT Technical FAQ

Expert engineering answers for system integrators and OEM developers.

What are the exact advantages of the AX-130BT’s Modular Mainboard Architecture?

The AX-130BT integrates BITECH’s unique modular motherboard design, segregating the CPU module from the base I/O. This allows you to scale across Intel® 4th to 14th Gen processors while keeping the chassis, mounting, and I/O layout identical—drastically reducing recertification costs for long-term OEM projects.

Does the AX-130BT support native CAN FD, and is it backward compatible?

Yes. It features 2× native CAN FD channels. It is fully backward compatible with low, medium, and high-speed CAN 2.0A/B protocols, allowing seamless integration with legacy industrial sensors and modern high-bandwidth robotics networks without external converters.

What is the verified operating temperature range of the AX-130BT?

The AX-130BT is validated for stable 24/7 operation from -20°C to +60°C under maximum CPU and graphics load. Its industrial-grade passive cooling is designed specifically for enclosed factory cabinets.

How does the “Three-Less” unibody design improve uptime?

By eliminating fans, cables, and jumpers (Three-Less), we remove the most common mechanical failure points. The system uses board-to-board connectors and an extruded aluminum unibody, securing reliable operation even under 15G shock and continuous industrial vibration.

Which controllers drive the network ports, and do they support segmentation?

It utilizes dual Intel® I226-AT 2.5GbE controllers. These server-grade controllers ensure low-latency packet switching, allowing you to effectively isolate deterministic control traffic from supervisory IT networks.

Can the 6× COM ports be configured for isolated RS485?

Yes. The AX-130BT provides 2× RS232/422/485 ports and 4× RS232 ports. These feature BIOS-level switching for industrial sensor interfacing, protected by high-grade ESD and surge suppression circuits.

What power protection is included for fluctuating factory grids?

The platform supports DC 9V–36V wide-voltage input. It is fortified with Reverse Polarity, Over-Voltage (OVP), and Over-Current (OCP) protection, ensuring stability for AGV batteries or standard 24V industrial rails.

Which OS versions are supported and validated?

We certify Windows 11 Pro, Ubuntu, and Debian. We provide a full BSP (Board Support Package) and dedicated driver support for all native hardware controllers to ensure rapid software development.

Is this modular architecture unique to BITECH?

Yes. Our specific modular mainboard architecture, designed for cross-generational compute scaling without chassis changes, is an engineering feature exclusive to our AX-130BT/AX-134BT premium platforms.

What OEM/ODM customization services do you offer?

We support OEM batches from 50 units, including BIOS branding, custom I/O boards, factory-applied conformal coating for extreme environments, and guaranteed 5–7 year lifecycle stability with formal PCN/EOL management.
