AX-530EBT Fanless Industrial PC | 3× PCI & 1× PCIe x4 Expansion
designed for legacy expansion, multi-PCI integration, and long-term industrial deployment. Supports PCI and PCIe expansion cards for automation, control, and industrial system integration.
System Role
- The AX-530EBT acts as a reliable host for up to three legacy 32-bit PCI cards, providing a critical bridge for older industrial automation hardware
- Serves as a control computer for motion, DAQ, and specialized I/O
- Enables long-term deployment of existing industrial systems
AX-530EBT Fanless Industrial PC
Legacy Migration Platform: 3-PCI Slot Embedded Computer Overview
The AX-530EBT is an embedded industrial computer purpose-built for organizations that rely on legacy PCI expansion cards while requiring modern processing performance. Built on the 6th Gen Intel® Core™ i5-6200U (Skylake) platform with 2 cores and 4 threads running up to 2.8 GHz, this system delivers a substantial compute upgrade over aging Windows 7 or XP industrial PCs without sacrificing existing hardware investments.
Its defining feature is the expansion architecture: three full-size 32-bit PCI slots plus one PCIe x4 slot enable simultaneous integration of motion control cards, data acquisition modules, frame grabbers, and specialized industrial I/O boards. This hybrid slot configuration is increasingly rare in modern industrial computing and makes the AX-530EBT one of the few remaining platforms that can host multiple legacy PCI cards alongside contemporary PCIe peripherals.
The unibody aluminum enclosure eliminates moving parts, ensuring reliable 24/7 operation in factory floors, outdoor kiosks, and mobile deployments. Wide-range 9–36V DC power input with Phoenix terminal and remote power-on support adapts to industrial electrical systems without additional converters. Dual Intel 82583V Gigabit LAN, full-function RS232/422/485 serial ports, and dual display outputs (VGA + LVDS/eDP) provide comprehensive connectivity for automation, monitoring, and control applications.
Engineered for harsh industrial environments, the AX-530EBT operates across –20°C to +65°C and withstands 1Grms vibration. Flexible mounting options include wall, side, DIN-rail, and VESA, allowing installation in control cabinets, machine enclosures, and vehicle compartments. With lifecycle availability of 10 years, formal PCN/EOL management, and OS support for Windows 11 Pro, Ubuntu, and Linux, the AX-530EBT is a strategic choice for long-term industrial system integration and legacy system sustaining.
AX-530EBT Key Engineering Highlights for Industrial Control
Intel® Core™ i5-6200U Processor
6th Gen Skylake, 2 Cores / 4 Threads, up to 2.8 GHz, 15W TDP
1× PCIe x4 Slot + 1× M.2 E-Key
Supports modern frame grabbers & Wi-Fi modules
3× Full-Size 32-bit PCI Slots
33 MHz clock speed, synchronous bus control
Wide-Range 9–36V DC Input
Remote power control via 2-pin terminal block.
2× Intel 82583V Gigabit LAN
Optimized for industrial Ethernet fieldbus
2× RS232/RS422/RS485
Full-function DB9 ports for legacy peripherals

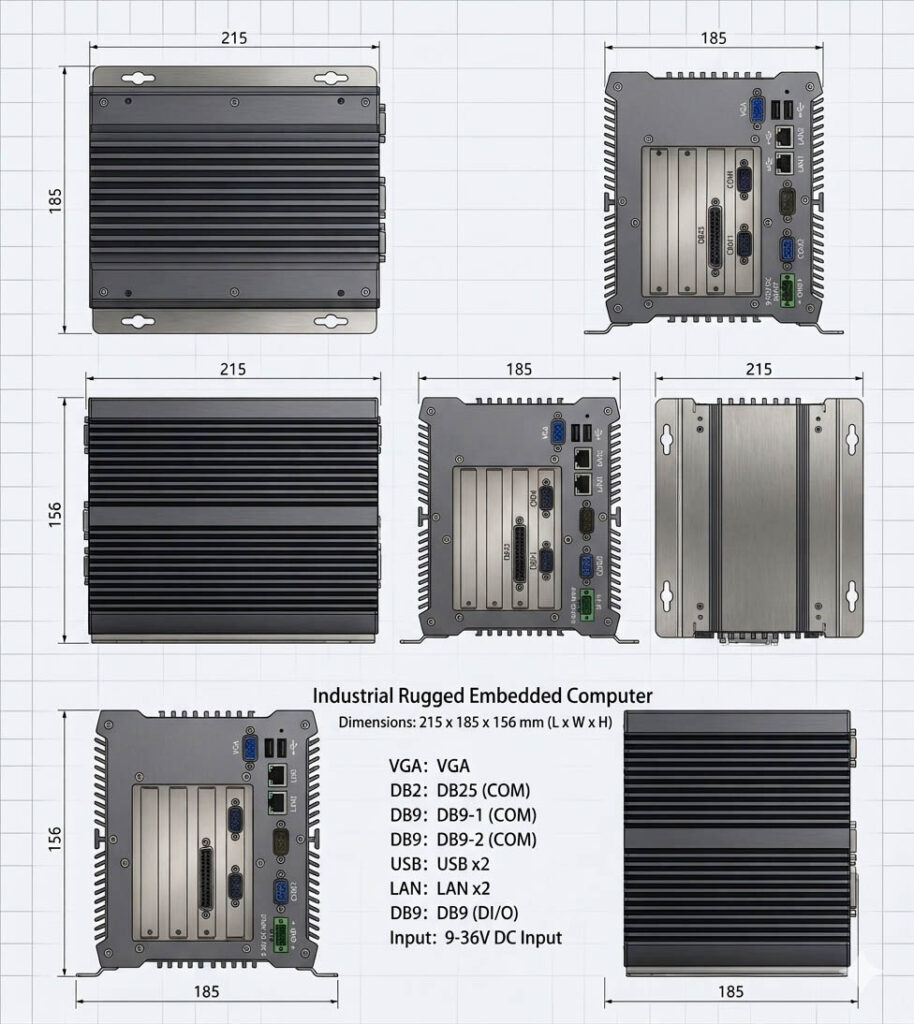

AX-530EBT Product Photos (For Engineering Evaluation)
Real photos to verify ports, mounting, and enclosure design.

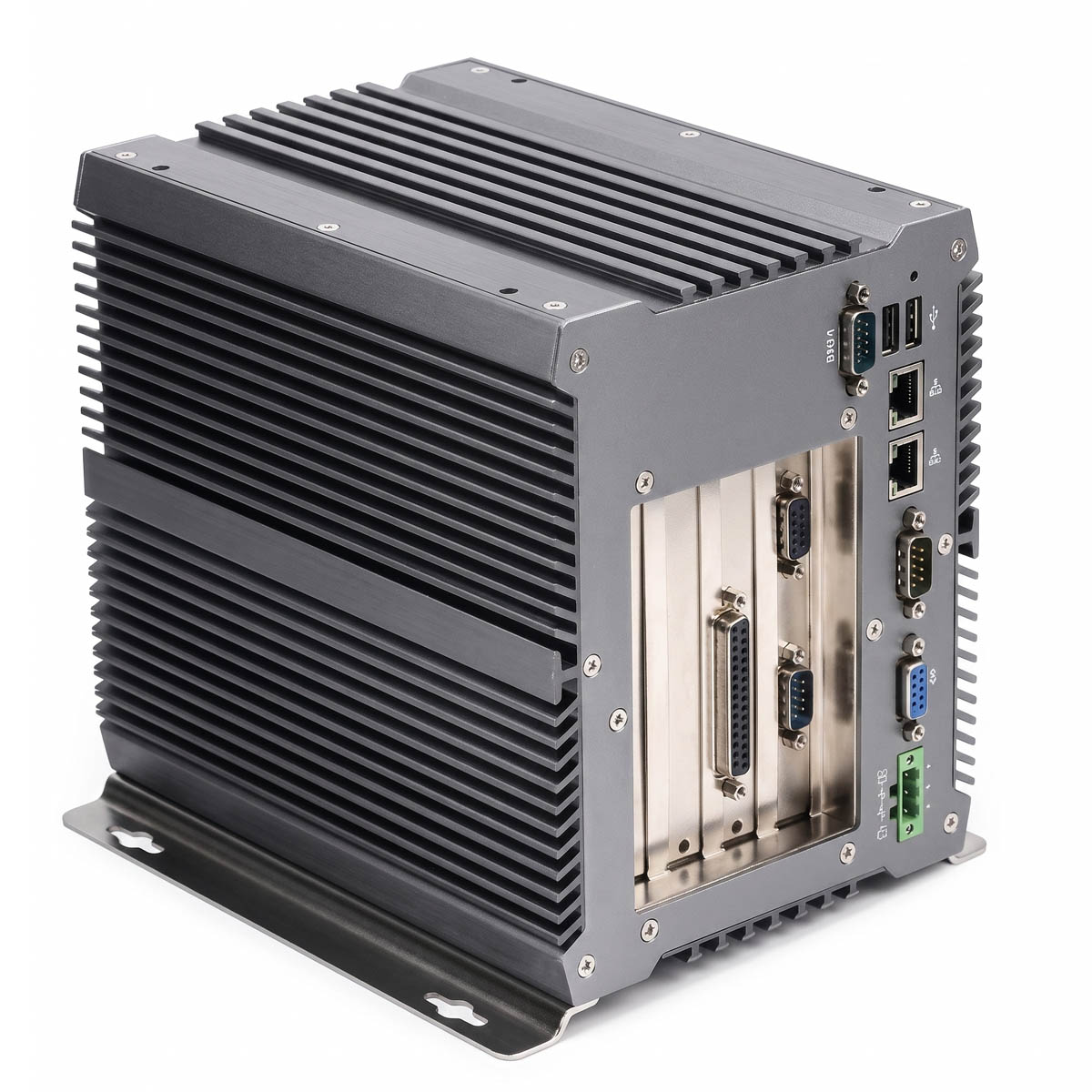

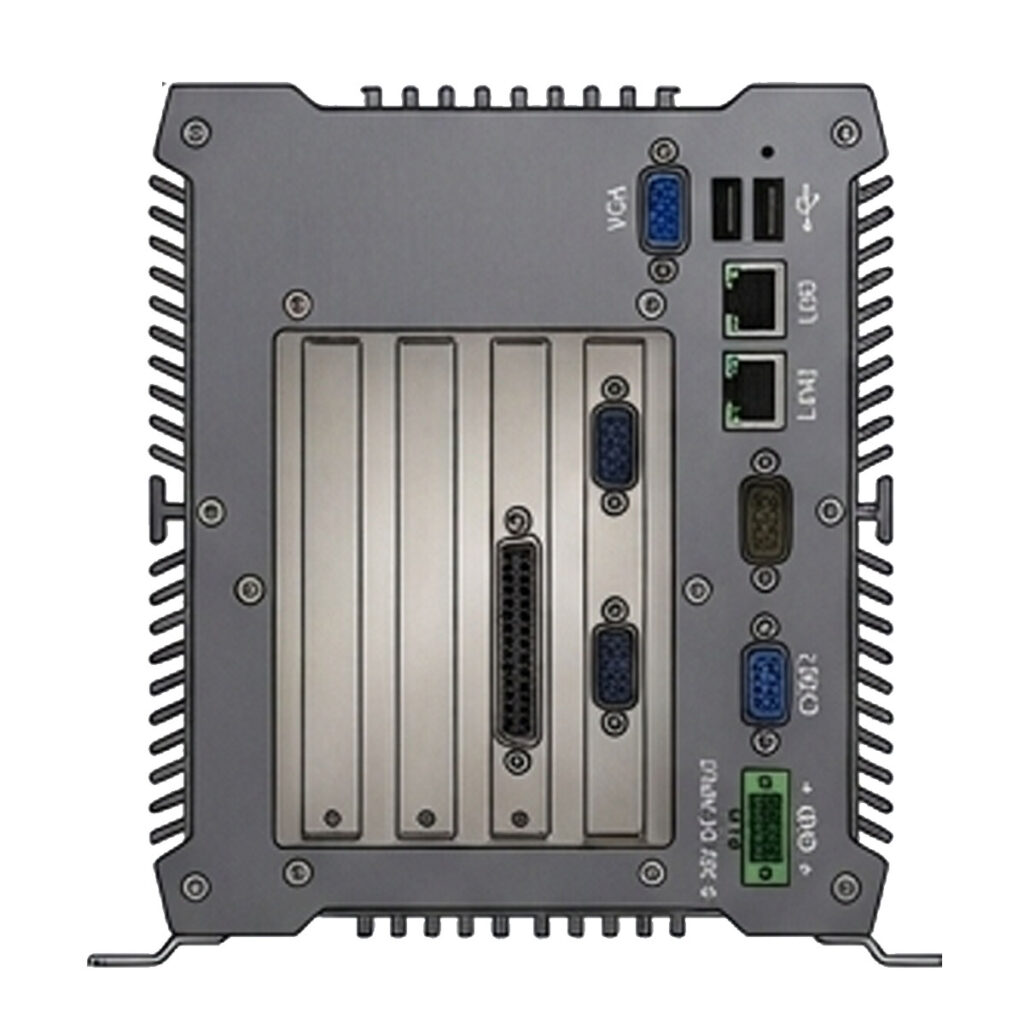

AX-530EBT Rugged fanless PC Rear I/O
AX-530EBT Rugged Fanless PCs Rear I/O

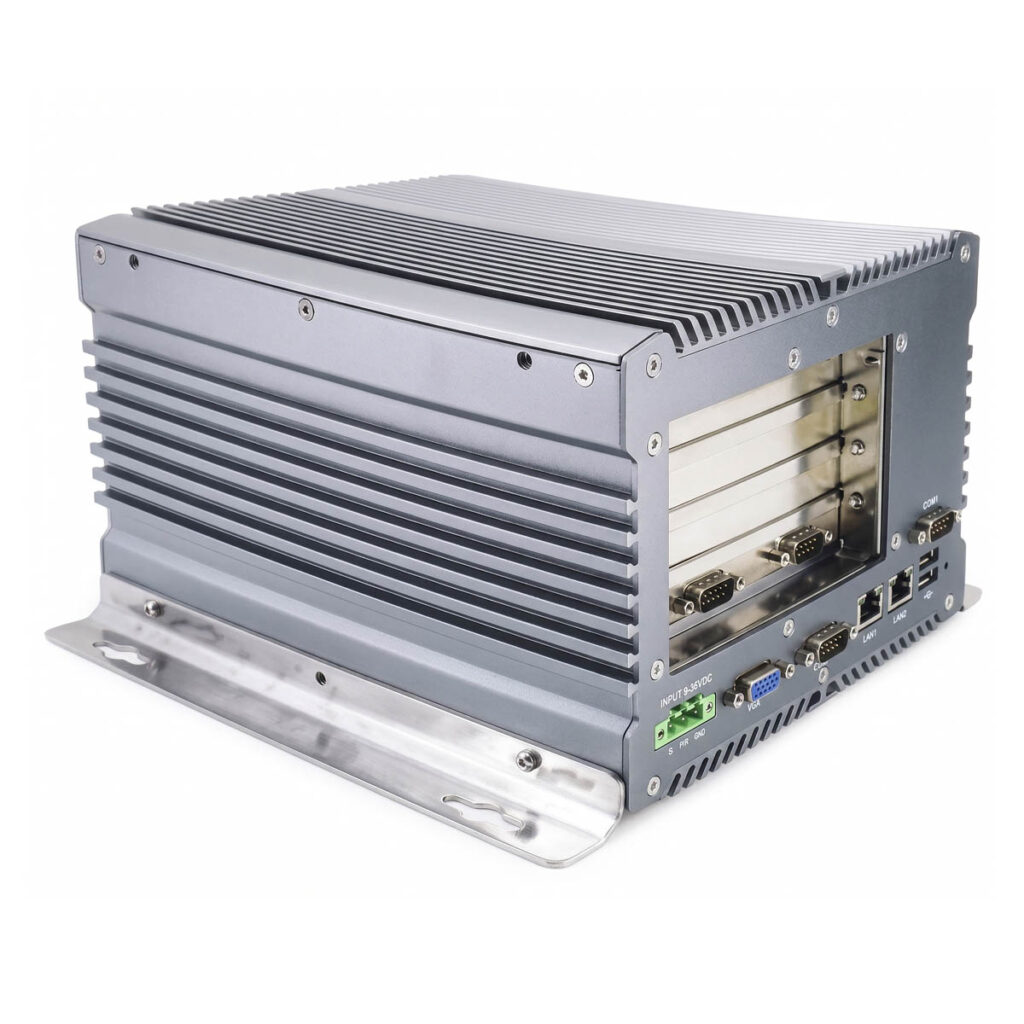

AX-530EBT Rugged Fanless PCs overview
Massive Expansion: Triple 32-bit PCI and High-Speed PCIe Slots
3×
PCI Slots
1×
PCIe x4 Slot
1×
M.2 E-Key (Wi-Fi)
AX-530EBT is designed for applications requiring legacy PCI cards such as motion control, data acquisition, or specialized I/O cards, while maintaining PCIe expandability for modern peripherals. The M.2 E-Key slot supports Wi-Fi module installation for wireless connectivity.
Power Input & Control
Engineering Note: Wide-range DC input supports unstable or vehicle-based power environments. Remote power control enables integration with industrial control systems.
Mechanical Design & Mounting
Design Features
- Fanless design
- Cableless internal structure
- Jumper-less design
- Unibody aluminum enclosure
Mounting Options
- Wall mount
- Side mount
- DIN-Rail mount
- VESA mount
Environmental Specifications
Operating Temperature
–20°C to +65°C
Storage Temperature
–40°C to +80°C
Humidity
95% RH @ 70°C
Shock
15G, 11 ms
Vibration
5–500 Hz, 1 Grms
Reliability: Passed full CPU and graphics burn-in testing without thermal throttling. All units undergo 100% 18-hour power-on burn-in test under load.
Certifications
Compliant with industrial EMC / EMI standards for 24V DC industrial environments.
AX-530EBT Technical Specifications
| Processor | Intel® Core™ i5-6200U (Skylake) |
| CPU Architecture | 2 Cores / 4 Threads, up to 2.8 GHz |
| TDP | 15 W |
| Cache | 3 MB L3 |
| Memory | On-board 4GB or 8GB DDR4, 2133 MHz |
| Storage | 1× 2.5″ SATA HDD / SSD |
| Ethernet | 2× Gigabit LAN (Intel 82583V) |
| USB | 4× USB 2.0 (Front) + 4× USB 2.0 (Rear) |
| Serial | 2× RS232 / RS422 / RS485 |
| Display | 1× VGA + 1× LVDS (LVDS/eDP selectable) |
| Audio | 1× 3.5mm combo audio jack |
| Expansion Slots | 3× PCI + 1× PCIe x4 + 1× M.2 E-Key (Wi-Fi) |
| Power Input | DC 9–36 V (DC jack / 3-pin Phoenix) |
| Remote Power | 2-pin terminal block |
| Operating Temp | –20°C to +65°C |
| Storage Temp | –40°C to +80°C |
This overview is intended for early-stage system verification. For full electrical, mechanical, and environmental specifications, please refer to the datasheet.
AX-530EBT Optimized Application Scenarios
Real-world deployments where AX-530EBT’s 3× PCI and 1× PCIe expansion deliver measurable value.
Legacy Windows 7/XP System Upgrades with Native PCI Support
This platform serves as an ideal replacement for aging Windows 7 or XP industrial PCs, allowing enterprises to preserve significant investments in existing PCI acquisition cards while modernizing core processing power. The 6th Gen Intel® Core™ i5-6200U provides a significant performance boost for legacy software environments.
Multi-axis Motion Control
By utilizing the three dedicated PCI slots, users can simultaneously install multiple motion control cards to manage complex robotic systems or multi-axis CNC machinery. BITECH’s scalable architecture ensures fast system integration for high-precision motor control applications.
High-precision Data Acquisition (DAQ)
Engineers can leverage the high-bandwidth PCIe x4 slot for advanced frame grabbers or high-speed imaging. Simultaneously, the PCI slots can be used for multi-channel analog-to-digital input cards, creating a hybrid high-performance test and measurement station.
Smart Factory Gateway
With its 9-36V wide-range DC input and full-function RS232/422/485 serial ports, the AX-530EBT acts as a robust edge computing hub. It is designed to bridge communications between various PLCs, field sensors, and higher-level cloud management systems in unattended industrial environments.
OEM / ODM Support
This model supports engineering customization for industrial deployment, depending on system architecture and project requirements.
Customization Scope
- PCI / PCIe slot configuration and card compatibility validation
- Serial port mode assignment (RS232 / RS422 / RS485)
- Power input range (9–36V DC) and connector type
- BIOS boot logo and startup configuration
- Display interface selection (LVDS / eDP)
Customization availability depends on project scope and validation requirements.
AX-530EBT Technical FAQ
Expert engineering answers for system integrators and OEM developers.
The AX-530EBT provides 3× full-size 32-bit PCI slots plus 1× PCIe x4 — a configuration that is increasingly rare in modern industrial computing. It lets you run multiple legacy PCI motion-control, DAQ, or fieldbus cards simultaneously in one machine, instead of splitting them across several aging systems. This makes it one of the few platforms that can sustain multi-card legacy deployments while still offering modern PCIe expansion.
The AX-530EBT provides a total shared expansion power budget of 45W. For multi-card deployments such as three motion-control cards, individual card consumption should not exceed 15W per slot to ensure thermal stability within the fanless enclosure. Submit your card list for a power review →
Yes. The universal 32-bit PCI slots on the AX-530EBT backplane feature keying that natively supports both 3.3V and 5V signaling. This ensures plug-and-play compatibility with legacy industrial fieldbus and I/O cards.
The AX-530EBT chassis supports standard full-height cards up to a maximum length of 240mm, which accommodates most industrial-grade DAQ, motion-control, and frame-grabber modules. Refer to our mechanical drawings for exact clearance dimensions.
Yes. The x86 architecture is validated for real-time industrial control and supports third-party real-time extensions including IntervalZero RTX, TenAsys InTime, and Linux Xenomai (RT-Preempt) to achieve sub-millisecond jitter for multi-axis CNC and robotic control.
Yes. The AX-530EBT is specifically engineered for legacy migration, with driver support for Windows 7 (32/64-bit), Windows 10/11 IoT, and mainstream Linux. This enables seamless transition of critical industrial software without code rewrites.
The AX-530EBT uses a precision-machined unibody aluminum enclosure that acts as a giant heat spreader. The internal layout is optimized for passive dissipation, keeping the system stable under 7×24 load even with all expansion slots populated.
Yes. The serial ports feature industrial-grade electrical isolation to prevent ground loops and signal interference, protecting your system from high-voltage spikes common around large factory machinery. How interface isolation works →
Yes. The AX-530EBT includes industrial-grade wide-range input protection with surge suppression and reverse-polarity defense, ensuring reliable power delivery to the CPU and expansion cards in noisy factory or battery-powered environments.
BITECH offers a guaranteed 10-year lifecycle with a formal Product Change Notification (PCN) policy, including a minimum 6-month notice before any major component transition — keeping your production schedule predictable and stable. See our lifecycle management →
BITECH offers complimentary compatibility reviews for OEM/ODM partners. Submit your card’s model number and datasheet through our RFQ portal, and our hardware engineering team will return a compatibility assessment covering electrical and mechanical integration.
Migrating multiple legacy PCI cards?
Send us your motion, DAQ, or frame-grabber card list — our engineers will confirm slot, power, and driver compatibility and quote sample units.
Complimentary compatibility review for OEM/ODM partners · Slot config, OS/BSP, and legacy Windows 7 driver support available
