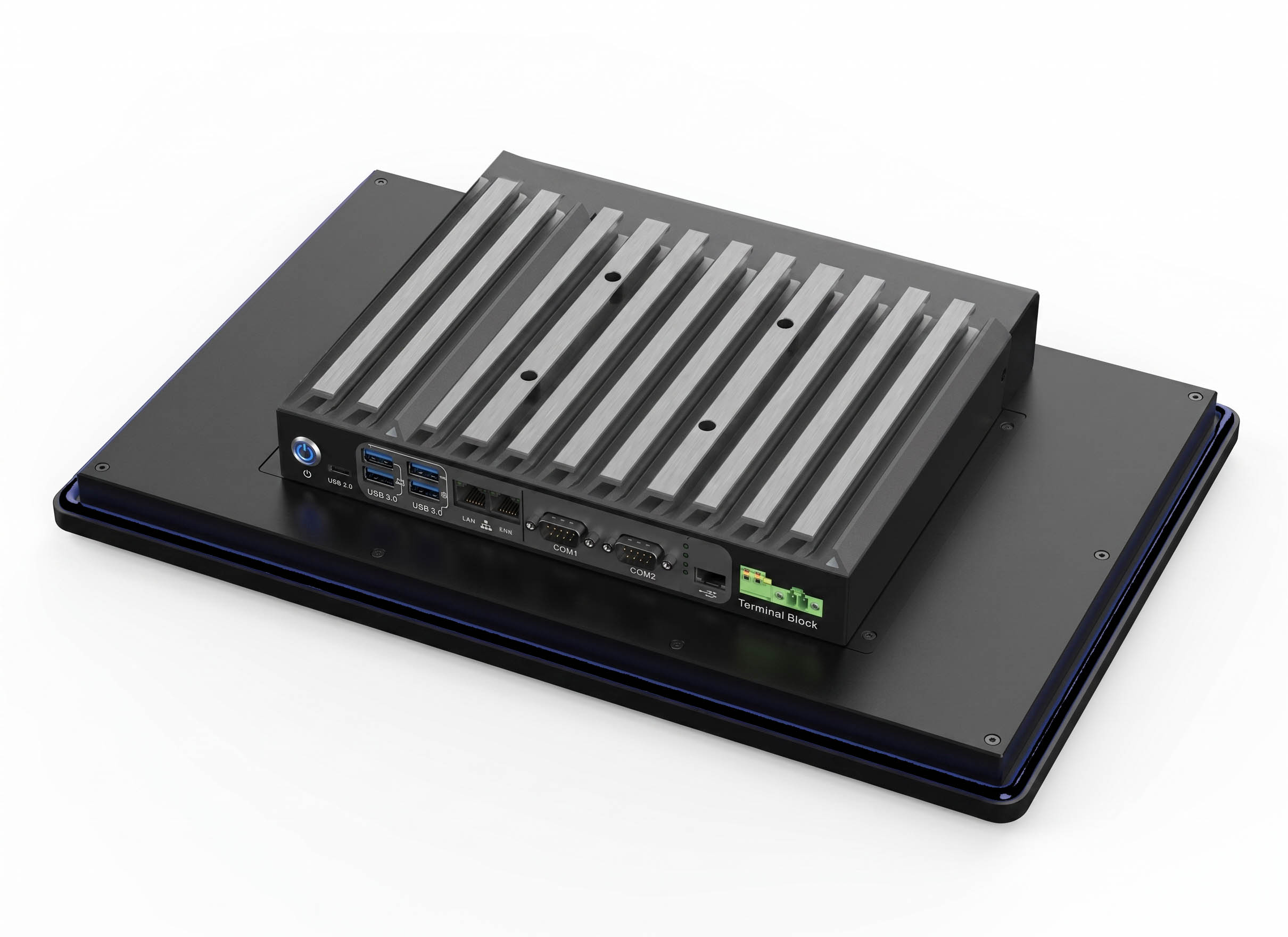

AP-AR1DS03 | Flagship 6.0 TOPS RK3588 Edge AI Panel PC
A unified AI-ready HMI platform with scalable display sizes from 10.1″ to 21.5″ for machine-level and operator-panel deployment
- Operator-facing HMI with local AI processing
- One hardware platform, multiple display form factors
- Designed for intelligent interaction at the machine level
Flagship RK3588 Processing Power for High-Load Machine Vision HMI
The AP-AR1DS03 platform is built on the Rockchip RK3588 octa-core ARM processor—the top-tier choice for demanding industrial HMI applications. With its 4× Cortex-A76 + 4× Cortex-A55 CPU architecture running at up to 2.4GHz, Mali-G610 GPU, and up to 6.0 TOPS NPU, it delivers significantly higher computing and AI capability than mid-tier ARM platforms. This unified platform supports display sizes from 10.1″ to 21.5″ while maintaining identical I/O and software architecture, simplifying deployment across diverse HMI requirements. The fanless aluminum unibody and IP65 front bezel ensure reliable operation in harsh industrial environments.
AP-AR1DS02 Modular Display Sizes & Mechanical Specifications
| Display & Mechanical Specifications | |
| Display Size | 10.1″ |
| Resolution | 1280 × 800 |
| Brightness | 400 nits |
| Aspect Ratio | 16:10 |
| Panel Cutout | 243 × 170 mm |
| Mechanical Size | 268 × 195 × 55 mm |
| Ordering Code | AP-AR1DS03 |
| Platform Specifications (Fixed) | |
| Processor | Rockchip RK3576 Octa-Core |
| NPU | 6.0 TOPS |
| Memory | On-board 4GB DDR4 (Up to 16GB) |
| Touch | 10-point Capacitive Touch |
| Power Input | DC 9–36V |
Unified RK3588 Mainboard Architecture with 8K Multimedia Pipeline
All display size variants—10.1″,12.1″, 15.6″, 17.3″, and 21.5″—are powered by the same Rockchip RK3588 octa-core platform with integrated 6.0 TOPS NPU. This means identical I/O interfaces, software stack, and AI capabilities across all form factors. Only mechanical dimensions and display specifications differ, allowing engineers to select the optimal display size for their application without changing software or integration logic.
AP-AR1DS03 Industrial-Grade Hardware Specifications & Reliability Milestones
Octa-Core RK3588 Platform with Quad Cortex-A76 Performance Cluster
Rockchip RK3588 with 4× Cortex-A76 + 4× Cortex-A55 cores, up to 2.4GHz
6.0 TOPS Co-Processor for Real-Time Neural Network Inference
Integrated NPU for local AI inference without cloud dependency
Mali-G610 MP4 GPU for Complex 3D Rendering & 8K UI
Advanced graphics for smooth HMI rendering and visualization
Multi-Size Display Options
12.1″, 15.6″, 17.3″, 21.5″ with capacitive multi-touch
IP65 Front Protection
Dust-tight and water-resistant front bezel for harsh environments
Heavy-Duty Fanless Casing with Copper Heatpipe Thermal Dissipation
Fanless, cable-less aluminum alloy construction for silent operation
Wide 9–36V DC Input
Industrial-grade power interface with remote on/off support
AP-AR1DS03 Technical Specifications (Key Components & Interfaces)
This overview supports early-stage system verification. For full electrical, mechanical, and environmental specifications, please refer to the datasheet.
| Processor | Rockchip RK3588, Octa-Core (4× Cortex-A76 + 4× Cortex-A55), up to 2.4GHz |
| GPU | Mali-G610 |
| NPU | Up to 6.0 TOPS |
| Memory | On-board LPDDR4 4GB (8GB / 16GB / 32GB options) |
| Storage | eMMC 32GB (64GB / 128GB / 256GB / 512GB options) |
| Touchscreen | 10-point capacitive, ≥6H surface hardness |
| Ethernet | 2× Gigabit LAN (10/100/1000) |
| Serial | 2× RS232, 2× RS232/RS485 |
| CAN | 1× CAN Bus |
| USB | 2× USB 2.0 |
| Display I/O | HDMI 2.0 (4K@60Hz), HDMI 2.1 (8K@60Hz) |
| GPIO | 8-bit GPIO |
| Wireless | Dual-band Wi-Fi (2.4G / 5G, Wi-Fi 6 option), BT 5.2 |
| Cellular | Built-in 4G / 5G module support (Mini PCIe, SIM / eSIM) |
| Power Input | DC 9–36V, Phoenix terminal, Remote Power On/Off |
Multi-Stream Visualization Platform: RK3588 Multimedia Powerhouse
The AP-AR1DS03 is more than an AI terminal—it is a comprehensive visualization engine. Leveraging the Mali-G610 MP4 GPU and high-performance video engine, this platform handles simultaneous 8K video decoding and complex 3D UI rendering without stealing cycles from your background AI inference tasks.
Multi-Stream Concurrent Decoding
Simultaneous handling of multiple high-res video inputs
Non-Blocking UI Rendering
GPU-accelerated UI keeps the dashboard fluid during AI load
Heterogeneous AI Computing: 6.0 TOPS NPU
Engineered for real-time industrial inference, the 6.0 TOPS NPU offloads heavy vision tasks from the CPU. This heterogeneous compute architecture ensures your application code remains deterministic while AI tasks run asynchronously in the background.
Development Boundary & Performance
The AP-AR1DS03 is fully optimized for the RKNN Toolkit, supporting robust INT8/INT16 model quantization. This ensures high-throughput, low-latency inference for multi-stream concurrent detection.
Engineering Note: This NPU is purpose-built for real-time edge vision (e.g., YOLO detection, defect classification). It is not designed for Large Language Model (LLM) or generative AI inference. For complex visual AI pipelines, our RKNN-optimized runtime provides the latency-critical performance required for AGV navigation and machine-level inspection.

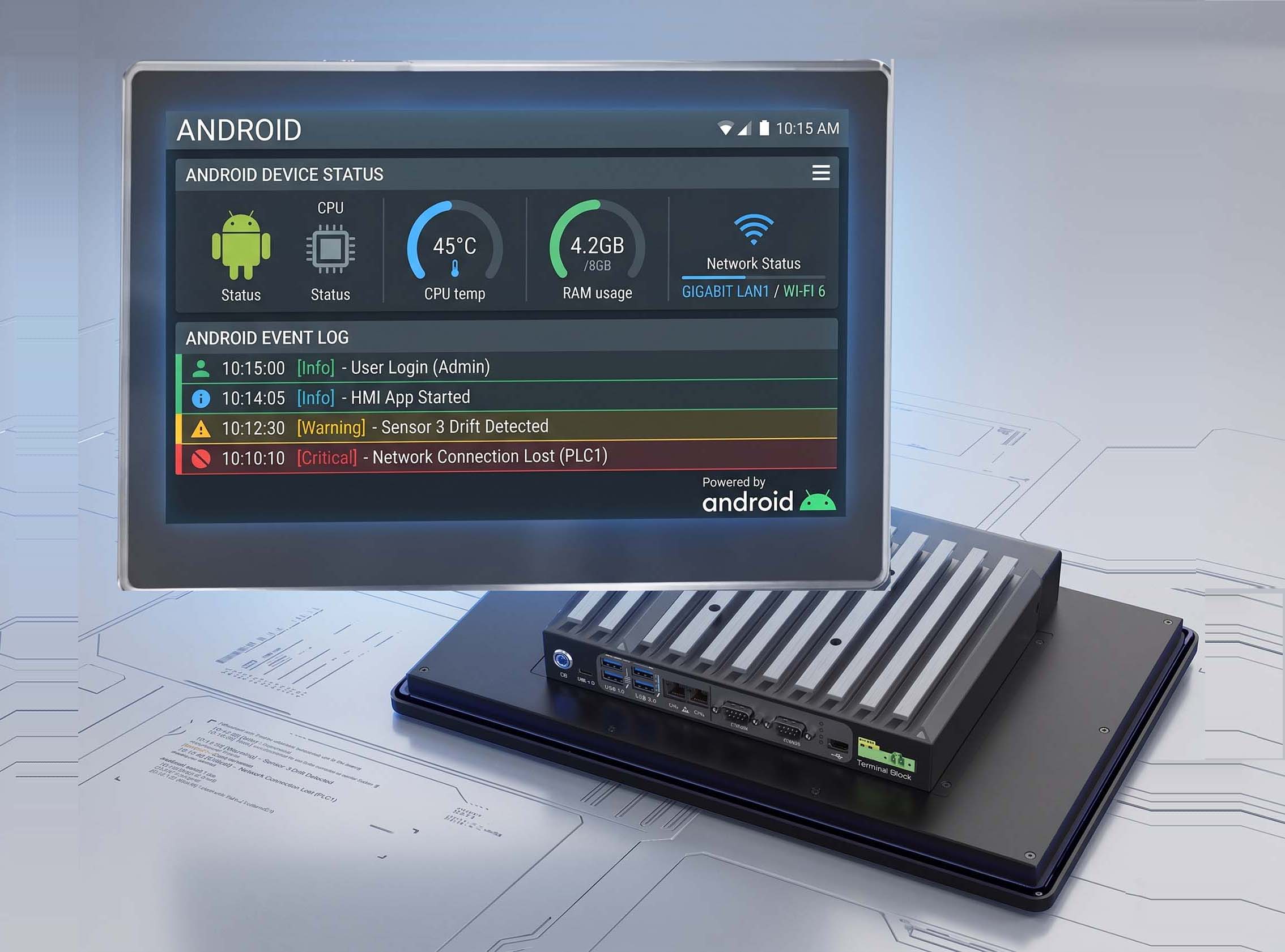

Next-Gen OS Integration: Android 12, Ubuntu 22.04 & Deep Learning Stacks
The AP-AR1DS03 platform natively supports Android 12 and Linux distributions (Ubuntu 22.04, Debian 11), making it suitable for embedded HMI frameworks and custom UI development. Compatible with mainstream AI frameworks including TensorFlow, TensorFlow Lite, ONNX, Caffe, and Darknet, with AI development tools for fast model conversion and deployment. Ideal for offline or low-latency AI-assisted HMI applications.
Android 12
Native support for embedded HMI applications
Ubuntu / Debian
Ubuntu 22.04 and Debian 11 with full BSP
AI Frameworks
TensorFlow, ONNX, Caffe, Darknet compatible
SDK & Dev Tools
NPU SDK and AI model conversion tools
Designed for Intelligent Industrial HMI Deployment
The AP-1010BT3588-A01 platform is engineered for front-panel installation on machines and operator panels, providing reliable HMI capabilities with embedded AI. Resistant to dust, water, and vibration, the fanless thermal design ensures silent, maintenance-free operation for continuous 7×24 industrial deployment.
Front-Panel Installation
Designed for machine panels and control enclosures
IP65 Dust & Water
Front bezel protection against harsh conditions
Fanless Thermal
Passive cooling for silent, maintenance-free operation
7×24 Operation
Engineered for continuous industrial deployment
Flexible Mounting for Machine-Level Integration
The AP-AR1DS03 platform supports wall mount, VESA mount, and open-frame installation across all display sizes. Compact industrial form factors ensure the selected display size fits seamlessly into operator panels, equipment enclosures, and control cabinets.
Wall Mount
Standard wall mounting for operator stations
VESA Mount
VESA-compatible for flexible positioning
Open-Frame
Panel cutout integration for equipment enclosures
AP-AR1DS03 Platform Ordering Codes & Package Option
Select the ordering code matching your required display size.
| Ordering Code | Display Size | Notes |
|---|---|---|
| AP-AR1DS03 | 10.1″ | Compact embedded HMI |
| AP-AR2DS03 | 12.1″ | Compact machine panels |
| AP-AR3DS03 | 15.0″ | Legacy 4:3 HMI replacement |
| AP-AR4DS03 | 15.6″ | Standard operator HMI |
Display size suffix defines mechanical dimensions only. Core hardware platform and I/O remain unchanged.
Embedded Android Platform for Industrial System Development
- Native Android operating system with open root access, supporting customized product and system development
- Enables system-level application development and deep functional customization beyond standard HMI use
- Suitable for industrial products requiring controlled software environments and long-term deployment
Remote Monitoring & Unattended Operation Support
- Supports real-time remote monitoring for large-scale and distributed deployments
- Automatic system recovery mechanisms, designed for 24/7 unattended industrial operation
- Supports OTA (Over-The-Air) remote system and application upgrades
- Supports WiFi Display for wireless screen casting during maintenance or operation
- Supports scheduled power on / off for unattended operation and centralized device management
Built-In System Reliability Mechanisms
- Built-in system watchdog, supporting both software and hardware watchdog modes to ensure long-term system stability
- Integrated real-time clock (RTC) with backup battery to maintain accurate system time during power loss
- Integrated super capacitor design for improved power-off protection and enhanced system reliability
Flexible Touch and Input Interface Support
AP-AR1DS03 supports a wide range of industrial touch technologies, allowing system designers to select the most suitable input method for different operating environments.
- Supports multi-point capacitive touch
- Supports multi-point resistive touch
- Supports multi-point infrared touch
- Supports multi-point nano-film touch
- Supports multi-point SAW (Surface Acoustic Wave) touch
- Supports multi-point optical touch
- USB-based touch interface support
- 1 × I²C interface for touch controller integration
Touch technology selection is project-dependent and can be customized based on environmental, operational, and user interaction requirements.
OEM & Customization Support
BITECH provides comprehensive OEM/ODM support for the AP-1010BT3588-A01 platform, including RAM and storage scalability (up to 32GB / 512GB), OS/BSP/SDK customization, branding options, and mechanical modifications. Long lifecycle availability (5–7 years) with formal PCN and EOL management ensures stable deployment for intelligent HMI projects across all display sizes.
Hardware Scalability
RAM up to 32GB, storage up to 512GB
OS & BSP Customization
Custom OS builds, BSP, and SDK support
Branding & Mechanical
Custom branding, enclosure, and I/O configurations
Long Lifecycle
5–7 year availability with PCN/EOL management
Related Industrial Panel PCs
Compare adjacent ARM Panel PC models to validate your platform selection.
Ready to Evaluate for Your Project?
Contact our engineering team to verify the AP-1010BT3588-A01 platform for your intelligent HMI requirements, request sample units, or discuss display size selection for your deployment.
AP-AR1DS03 Technical FAQ
Advanced engineering insights for the RK3588 flagship platform.
How does the 6.0 TOPS RK3588 NPU handle high-load vision tasks?
The 6.0 TOPS NPU is optimized for high-concurrency workloads. Unlike lower-tier platforms, RK3588 can handle multiple concurrent AI models—such as simultaneous object detection, segmentation, and classification—with minimal latency, making it the flagship choice for complex machine vision systems.
Why is 8K decoding significant for an industrial Panel PC?
8K decoding capability enables high-resolution multi-view monitoring and information-dense dashboards. It allows the HMI to display multiple high-definition camera feeds without CPU overhead, ensuring the user interface remains fluid even when processing heavy multimedia data.
How do you handle heat dissipation for the high-performance RK3588?
We employ a high-thermal-conductivity copper heatpipe array coupled with a precision-machined aluminum unibody chassis. This ensures the heat generated by the RK3588 is efficiently distributed across the entire surface area, maintaining performance in fanless environments.
Is this platform suitable for multi-camera AGV/AMR navigation?
Absolutely. The RK3588's high-speed interface availability (including MIPI-CSI lanes) supports multi-camera setups for 360-degree vision and SLAM navigation, combined with sufficient NPU power to process these streams for obstacle detection in real-time.
Are the industrial ports surge protected?
Yes. All RS232/485 serial ports and CAN Bus interfaces are engineered with TVS surge protection and ESD isolation, meeting strict industrial standards for communication stability in high-EMI factory zones.
Does the system support containerized (Docker) applications?
Yes. Our Linux BSP includes kernel-level support for Docker containers. This enables you to deploy modular AI algorithms and HMI services independently, significantly simplifying your software lifecycle and remote management updates.
Can I customize the OS/BSP image for proprietary needs?
Yes. We provide full access to our BSP, allowing custom Android/Linux builds. We also offer services for creating signed images, customized boot logos, and pre-installed application sets for streamlined manufacturing rollout.
What happens in the event of a sudden power outage?
The unit features an integrated Super Capacitor for power-off protection. This allows the system to save critical logs and perform a clean shutdown, protecting file system integrity and hardware health.
What is the lifecycle and revision control policy?
BITECH guarantees 5–7 year product availability. We manage all component lifecycles, and any hardware revision (e.g., component change due to vendor EOL) is communicated via formal PCN, ensuring zero production disruption.
Can I scale my storage/RAM for AI projects?
Yes. The modular RK3588 platform supports custom configurations, including up to 32GB RAM and 512GB eMMC storage, ensuring you have the necessary resources for local AI model buffering and high-load industrial applications.
